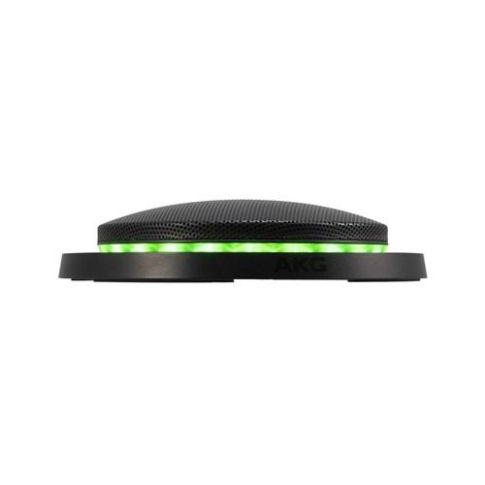

AKG CBL301 - Triple element, professional low-profile boundary layer microphone

Key Features Triple element, professional low-profile boundary layer microphone


Key Features Triple element, professional low-profile boundary layer microphone

The CBL301 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great. Features Low Profile Minimally disrupts the table surface Triple Element Cardioid Microphone User-configurable from 270° to 360° Screw Terminals Greatly simplify installation Mute Switch Change talk and mute state by simply touching the mic RGB LED Ring Indicators Red, green, and blue LEDs provide clear visual cues to indicate current talk and mute state RF Interference Suppression Avoid interference from mobile phones and laptops Elegant Design Complements any room interior Warranty We offer a 2 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

Description AKG CBL Series Professional Boundary Layer Microphones, Triple-Element Model CBL301-B Polar Pattern Cardioid Minimum Current 400 µA Maximum Current 600 µA Typical Current 500 µA Maximum SPL 120 dB LED RGB ring LED to indicate mic status Dimensions Height 28.4mm (1.1”) Width 128.5mm (5.1”) Design Finish Black Powering Input Input Max Voltage 24V ( 10%) Input Min Voltage 3.3V (-10%) Input Resistance 100 k? Audio Output Output Voltage 3.3V (±10%) Output Max Current 500 µA (±10%) Powering Interface Min Supply Voltage 24V -10% (phantom power) Max Supply Voltage 48V -10% (phantom power) Output Impedance Maximum 200 ? Application Conferencing Yes Device Boundary Layer Microphone Yes
