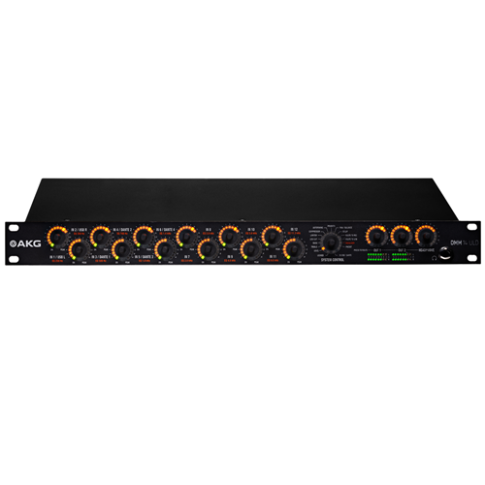

AKG DMM14 ULD - Reference digital automatic microphone mixer w/LAN interface via Ethernet, DANTE chip

Key Features Digital automatic microphone mixer, precise mixing of up to 140 channels by cascading up to 10 DMM14 U mixers, w/ LAN interface via Ethernet and DANTE chip
$11,543.64
Key Features Digital automatic microphone mixer, precise mixing of up to 140 channels by cascading up to 10 DMM14 U mixers, w/ LAN interface via Ethernet and DANTE chip
Engineered and made in Germany, the DMM14 U digital automatic microphone mixer is ideal for large meetings and conferences. Its DSP function ensures precise mixing of up to 140 channels by cascading up to 10 DMM14 U mixers. Two additional stereo audio outputs and one stereo USB offer additional routing options. Due to high signal-to-noise ratio, the DMM14 U also keeps noise from multiple open microphones to a minimum. Numerous DSP functions such as filters, compressor/limiter, ducking and routing make the DMM14 U a great fit in a variety of spoken word applications. Additionally, the UL version offers a LAN interface via Ethernet to enable the control over large distances using, for instance, an AMX control system. In the ULD version, incorporating a highly sophisticated DANTE chip, all ins are available as direct outs, making it an outstanding tool for broadcast applications, while all outs are also available on the DANTE stream. In total the DMM14 ULD provides 22 free assignable DANTE outs. Additionally, 4 DANTE streams can be used as inputs. Features 12 band graphic EQ on outputs For optimized loudspeaker tuning 6 programmable presets For easy and fast tailoring to different situations Two channel USB streaming In and Out To interface with IT networks Up to 10 units cascadable For simultaneous use of up to 140 channels Digital signal processing and sophisticated mixing algorithm To feed in e.g. a laptop signal for wireless multimedia presentations Audio matrix routing of all inputs to all outputs For creating multiple mixes of multiple output combinations Warranty We offer a 2 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

Finish Black Dimensions Width 483 mm (19 in) Height 45 mm (1.77 in) Depth 220 mm (8.66 in) Audio Output Max. output level 20 dBu Dynamics >110 dB Signal-to-noise ratio (S/N) >90 dB Min. load impedance <100 Ω Data format 24 Bit Sample frequency 48 kHz Audio Input Gain 0 dB ... 60 dB Max. input level 20 dBu Common mode rejection >70 dB Dynamics >120 dB Signal-to-noise ratio (S/N) >90 dB Input impedance >8 kΩ Equivalent input noise -127 dBu Phantom voltage 48 V DC Max. supply current per input 10 mA Infeed resistors 2 x 6.8 kΩ Data format 24 Bit Sample frequency 48 kHz Powering Interface Input voltage 100 ... 240 V AC Mains frequency 50 ... 60 Hz Max. power intake 75 Watt Output voltages 24 V Application Conferencing Yes Presentation Yes Sound Reinforcement Yes
