AKG PAE5 M - Reference phantom power module to combine with automixers - DAM Series

Key Features Phantompower adapter - 5pinXLR
Key Features Phantompower adapter - 5pinXLR

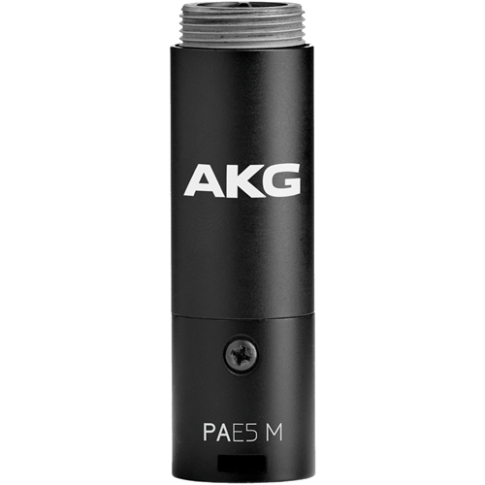

The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the 'mic on' status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM Series as well as the HM1000 M hanging module. Features Extra feeding of LED ring to show mic status For use with automixers including logic outputs Highly reliable contacts to mounting modules Prevent contact problems and ensure extra-long life RFi Shield technology Provides high immunity to radio-frequency interference Feeds all DAM Series capsules For highest flexibility Switchable bass roll off For reduction of body noise and proximity effect Warranty We offer a 2 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

Audio frequency bandwidth 20 - 20000 Hz Bass cut filter 150 Hz Electrical impedance < 600 Ohms Recommended load impedance > 2000 Ohms Dimensions Height 65.5 mm (2.58 in) Diameter 19.1 mm (0.75 in) Net Weight 43 g (1.51 oz) Audio Output Type Balanced XLR Gender Male Contacts 5-pin Powering Interface Voltage 9 to 52 V Current 3.5 mA
