AVE Pro-FX16 Strike PA Mixer With FX And USB 18 Channel

Be the first to review this product
SKU
PRO-FX16

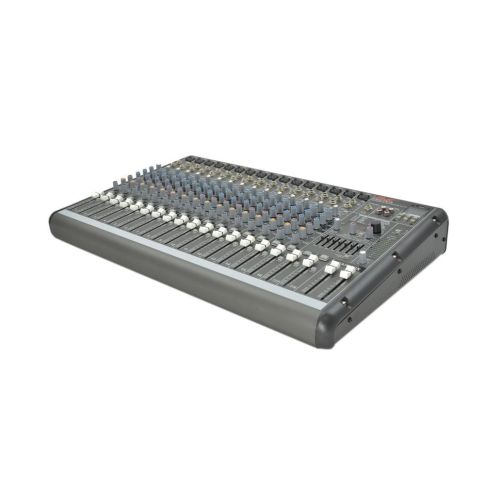

AVE Pro-FX16

The AVE Pro-FX16 is a versatile 16+2 Channel Strike PA mixer designed to give you the connectivity and control your band / venue needs. Featuring 16 mono inputs with both XLR (mic inputs) and 1/4″ TS Jack (line inputs) for connecting your microphones, keys, guitars, and more… Also featured is a 7-band graphic EQ, and an on-board 24-bit Digital Multi-FX Processor with 256 presets allowing you to colour and shape your sound. And a built in USB media player for your backing tracks and background music.

The PRO-FX16 uses an easy to navigate layout with gain control, 3-band parametric EQ per channel, as well as an insert, FX send, and monitor sends. Making it easy to tweak and adjust your inputs to get a great mix. A must have for any band, or venue wanting to improve their sound and mixes without blowing the budget.

$529.00

AVE Pro-FX16

The AVE Pro-FX16 is a versatile 16+2 Channel Strike PA mixer designed to give you the connectivity and control your band / venue needs. Featuring 16 mono inputs with both XLR (mic inputs) and 1/4″ TS Jack (line inputs) for connecting your microphones, keys, guitars, and more… Also featured is a 7-band graphic EQ, and an on-board 24-bit Digital Multi-FX Processor with 256 presets allowing you to colour and shape your sound. And a built in USB media player for your backing tracks and background music.

The PRO-FX16 uses an easy to navigate layout with gain control, 3-band parametric EQ per channel, as well as an insert, FX send, and monitor sends. Making it easy to tweak and adjust your inputs to get a great mix. A must have for any band, or venue wanting to improve their sound and mixes without blowing the budget.

AVE Pro-FX16

The AVE Pro-FX16 is a versatile 16+2 Channel Strike PA mixer designed to give you the connectivity and control your band / venue needs. Featuring 16 mono inputs with both XLR (mic inputs) and 1/4″ TS Jack (line inputs) for connecting your microphones, keys, guitars, and more… Also featured is a 7-band graphic EQ, and an on-board 24-bit Digital Multi-FX Processor with 256 presets allowing you to colour and shape your sound. And a built in USB media player for your backing tracks and background music.

The PRO-FX16 uses an easy to navigate layout with gain control, 3-band parametric EQ per channel, as well as an insert, FX send, and monitor sends. Making it easy to tweak and adjust your inputs to get a great mix. A must have for any band, or venue wanting to improve their sound and mixes without blowing the budget.

  • 16 Microphone / Line Inputs
  • Independent USB media player with dedicated channel fader
  • 24-bit Digital Multi-FX processor with 256 preset
  • Smooth linear fader response
  • Balanced XLR and Jack Outputs
  • 3 Band parametric EQ on each channel
  • AUX send/return for external FX processors
  • 7 band graphic EQ for master output
  • +48V phantom
  • Easy to navigate design

More Information
Additional Information

Channels: 18

Inputs: 16x XLR (mic), 16x 1/4″ TS (line), 2 RCA (tape)

Outputs: 2x XLR (balanced), 3x 1/4″ Jack (balanced / unbalanced), 1x 1/4″ TRS (phones), 2x RCA (tape)

Other Connections: 1x USB (media player), 16x 1/4″ TS (Inserts),  2x 1/4″ TRS (returns)

Frequency Response: 20Hz – 40kHz (+0dB / -1dB)

USB Player Media Type: WAV, WMA, MP3

Phantom Power: 16 Channel (+48V)

Number of FX: 256

EQ Shelving;

  • High:+/-15dB @ 12kHz
  • Mid: +/-15dB @ 2.5kHz
  • Low: +/-15dB @ 80Hz

Input Impedance;

  • Mic In: 2.5kOhm
  • Line In: 10kOhm

Signal to Noise Ratio >90dB

THD <0.005%

Power Supply 240V AC / 50 Hz

Dimensions: 613 x 390 x 100 mm

Weight 7.4 kg
