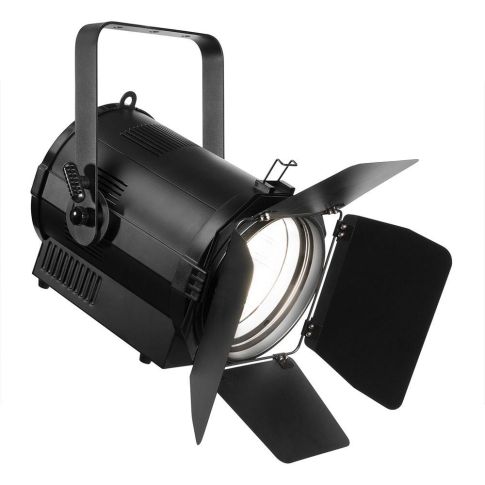

Beamz BTF300Z LED Fresnel 300W Warm White with Zoom WW/CWLED

The BTF300Z is a 300W Fresnel Zoom. It uses a high-power single source LED engine which will provide you with a smooth and even field or warm light.


The BTF300Z is a 300W Fresnel Zoom. It uses a high-power single source LED engine which will provide you with a smooth and even field or warm light.

Beamz BTF300Z LED Fresnel 300W

The BeamZ BTF300Z is a professional 300W Fresnel Zoom. It uses a high-power single source LED engine which will provide you with a smooth and even field or warm light.

What makes the BTF300Z a great versatile fixture is the ability to zoom. It features a motorized 8° to 60° degree zoom function that allows for beam control. You can dim the light as well as operate the BTF300Z as a strobe with up to 17x flashes per second. This makes the BTF300Z a great addition for theatrical lighting, art galleries, museums, exhibitions, wedding engagements and showrooms. Furthermore, the BTF300Z has an exceptionally long life expectancy of 50,000 hours.

The BTF300Z is equipped with high-quality optics

The BTF300Z is a compact and lightweight professional Fresnel light. It features an Aluminium body that is built to last. It makes it perfect for the mobile performer as well as a permanent lighting fixture in a venue. The BTF300Z will also provide you with intelligent temperature control for silent operation. This means that you can use the BTF300Z for video productions as preserving silence on sets during a take is essential. It also features high- quality optics that provides 300W of Warm White COB LED. 16-bit dimming via DMX is available with a DMX controller and further featured is a flicker-free mode with selectable PWM.

DMX (3-pin) and Artnet connection with RDM function

On the back of the BTF300Z, you will find a DMX In/Out with a 3-pin XLR connection. You can connect multiple lights together when using a standard DMX controller. You just need to connect the DMX output of the controller directly to the DMX input of the first fixture in a DMX chain. The BTF300Z also feature an ART-Net IN/OUT connection. ArtNET is the perfect way to send and receive many DMX universes or to connect multiple lighting consoles together. Art-Net is essentially a communication lighting protocol for transmitting DMX and RDM (Remote Device Management) signals over Ethernet.

You can run the BTF300Z in both DMX and Manual modes. When connected to a DMX it will provide you with 1, 2, 3, 4 channels in DMX mode. You can access the full operating controls of the BTF300Z via the full-colour LCD Display on the back of the unit. Here you can set modes and adjust parameters when using the BTF300Z in Manual Mode.

BTF300Z is a fresnel style soft edge LED

The BTF300Z has a colour temperature of 3200K. This will produce a warm white/yellow light that’s best for low-light areas where ambient lighting is needed. The removable barn doors will allow you to adjust the perfect beam shape so you can create the ideal focal point. It offers a Beam Angle between 8° and 27° degrees and a Field Angle between 19° and 60° degrees. The BTF300Z is a modern fresnel and a great choice when considering a replacement for traditional lights.


Also available is a wide range of DMX Controllers in the Wwave Online Store.

  • 300W Warm White COB LED
  • Colour Temperature: 3200K
  • Lifetime LED: 50,000 hours
  • 8° to 60° Motorized zoom
  • Compact and lightweight Aluminium body
  • HQ optical system
  • CRI 98 (Colour Rendering Index) TLCI up to 98
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Dimmer curves selectable
  • Control Panel: full colour LCD Display
  • DMX (3-pin) or manual control options
  • Artnet connection with RDM function
  • Intelligent temperature control for silent operation
  • Including power cable, barndoor, safety cord and colour frame

More Information
Additional Information

Technical Data

Light source: Single colour LED

LED colours: Warm White

LED power: 300W

Colour temperature: 3200K

Quantity of LEDs: 1

Beam angle: Min: 8

Beam angle: Max: 47

Field angle: min: 19

Field angle: max: 60

Illuminance: 136.852 lx @ 1m

Flash rate per second: 1 – 20Hz

DMX channels: 1, 2, 3, 4

DMX connector: ART-Net, 3-pin XLR

Modes: DMX, Manual

IP rating: IP20

Cooling: Temperature-controlled fan

Display: LCD

Power Plug: Power-connector

Power consumption: 2.32 – 1.10A

Power supply: 100-240VAC 50/60Hz

Dimensions (L x W x H): 320 x 280 x 490mm

Weight: 9.20 kg
