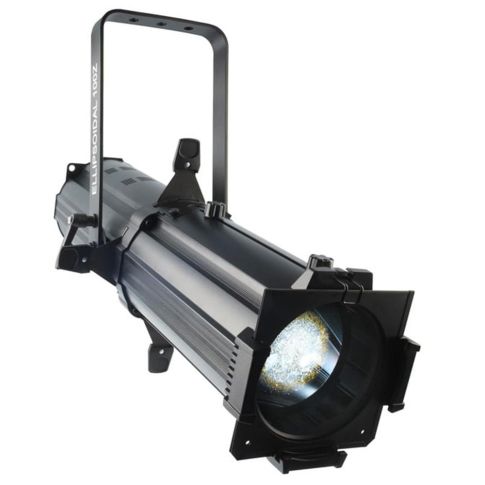

Chauvet DJ EVE E-100Z LED Ellipsoidal Framing Spot
Chauvet DJ’s EVE E-100Z is a powerful LED framing spot designed to highlight and illuminate particular areas of your stage, performance, or display. The fixture includes 4 ‘frames’ for shaping your beam, a range of gobos, and has a warm white colour.
Chauvet DJ EVE E-100Z LED Ellipsoidal Framing Spot
The EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100W warm white LED light source. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams. Its primary use is highlighting stage areas and project patterned gobos. Featuring a robust professional design with ultra-low power consumption it has a surprising output thanks to the warm white 100W LED power source. Ideal for stage and theatre applications, the EVE E-100Z is also well suited for larger productions and lighting setups.
Versatile Spot Light
The EVE E-100Z features an ultra-smooth electronic dimming, and both 3-pin DMX and wireless DMX control (via the DFi-USB connection, sold separately). It’s super easy to set up and offers a manual zoom for flexibility. This means that it allows you to project from any distance. Furthermore, its framing shutters let you easily alter and control the projected beam. The EVE E-100Z includes holders for glass and steel gobos as well as a gel frame. You can even operate EVE E-100Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.
EVE E-100Z Operations and Connectivity
The EVE E-100Z features a 1 LED (warm white) 100 W (2.3 A) and offers a life expectancy of 50,000 hours. Because of the flicker-free operation, you can use the EVE E-100Z for video productions. The rear panel consist of an LED Display with Menu buttons and both DMX IN and DMX OUT connectivity. Aside from the Fuse Holder and Power the rear panel also features an optional D-Fi USB.
You can use the EVE E-100Z in both standalone or with a DMX controller where you have 1 or 3 DMX channels to work with. When power linking the EVE E-100Z you can link 9 units @ 120 V or 16 units @ 230 V. The EVE E-100Z also offers a Bracket adjustment Knob, 4x Framing Shutters and Safety Loop. The exterior includes a Zoom Knob, Gobo Holder Thumbscrew, Gel Frame and Focus Knob.
Also available is a wide range of DMX Controllers.
- LED Ellipsoidal shines a hard-edged, warm white spot in any direction
- Easily highlight areas by altering the projected beam with framing shutters
- Flexibility to project from any distance using the manual zoom
- Includes holders for glass and steel gobos and a gel frame
- Save time running extension cords by power linking multiple units
- Eliminate the need for DMX control with standalone operation
DMX Channels: 1 or 3
DMX Connectors: 3-pin XLR
Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 30 Hz
Zoom Angle: (manual): 14° to 30°
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
Weight: 12.6 lb (5.7 kg)
Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
Approvals: CE, MET
Color Temperature: 3,500 K
Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)
|Event Size||Up to 20|
