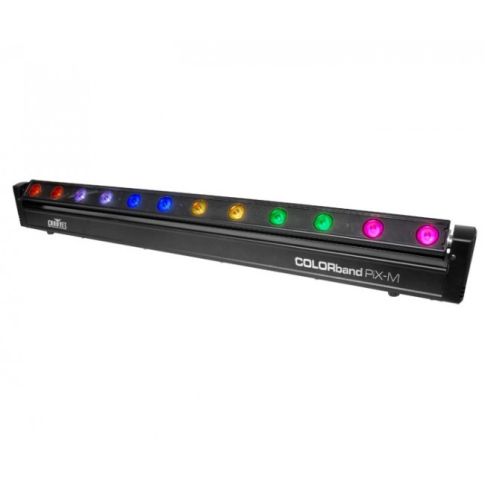

COLORband™ PiX-M adds a new dimension of motion to the popular COLORband™ PiX linear fixture. Powered by 12 tri-color LEDs, it uses DMX-controllable motors to sweep back and forth, or from position to position, creating dynamic effects, especially when used in a line or matrix of multiple units. It includes built-in automated programs to create stunning combinations of light and motion, while 3- and 5-pin DMX connections allow for easy integration into any lighting rig. Each LED is individually controllable for pixel-mapping animations and graphics.
• DMX Channels: 5, 6, 8, 10, 11, 14, 20, 38 or 42
• DMX Connectors: 3- and 5-pin
• Tilt: 270°
• Light Source: 12 (tri-color) 3W (350mA x 3) LEDs 50,000hrs
• Beam Angle: 20°
• Field Angle: 34°
• Illuminance: 2,321 lux @ 2m
• Power Linking: 15 units @ 230V
• Input Voltage: 240VAC 50Hz
• Power and Current: 117W, 0.5A @ 230V 50Hz
• Weight: 4.7kg
• Size: 1,040 x 67 x 188mm
• Approvals: CE
