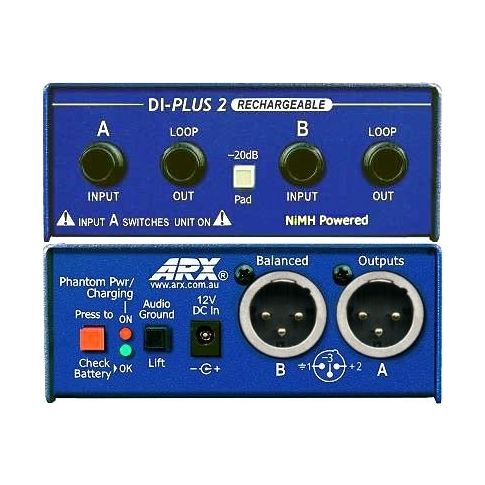

ARX Active DI Hire

SKU
DI-Direct Injection ARX
DI Plus 2 RC is powered with an internal long life NiMH rechargeable battery that can be charged off either phantom power applied to either of the output XLR sockets or via the 12V DC input, removing battery throw away" as an environmental issue.""The new DI Plus2 RC features low noise high impedance input buffers with switchable 20db Pad, and low distortion high current output stages able to drive long cable runs." "
$27.50
Features a low noise high impedance input buffer with switchable 20dB Pad, and a low distortion high current output stage able to drive the longest cable runs. Packaged in a single channel stand-alone format. The DI Plus 2 represents another major step forward in active direct boxes.

N/A

More Information
Additional Information

Max Input Level
+12 dB Phantom powered
+6 dB Battery powered

Input Impedance 1 Meg Ohm

Max Output Level
+17 dB 10K Ohm load Phantom powered
+12 dB 10K Ohm load Battery powered
+11 dB 600 Ohm load Phantom powered
+12 dB 600 Ohm load Battery powered

Output Impedance 680 Ohms Balanced

Output Signal to Noise
-100 dB unweighted
-104 dB A weighted

Dynamic Range
117 dB 10K Ohm load Phantom powered
112 dB 10K Ohm load Battery powered
111 dB 600 Ohm load Phantom powered
107.5 dB 600 Ohm load Battery powered

Distortion 100 Hz .0018%, 1KHz .0028%, 10KHz .0056%

Frequency Response 20Hz to 20KHz, ± 0.2 dB

Gain through Unit: 6dB (Pad switch out)

Pad Switch: Global -20 dB attenuation

Input and Loop Out Connectors
Insulated jacks
(!!!Note that Channel A Input connector switches the unit on when a plug is inserted. Remove plug when storing to avoid battery drain!!!)

Output Connectors
3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold.
Global Audio Ground (Pin 1) lift switch

Construction
All-steel chassis, fibreglass PCB, NiMH battery
