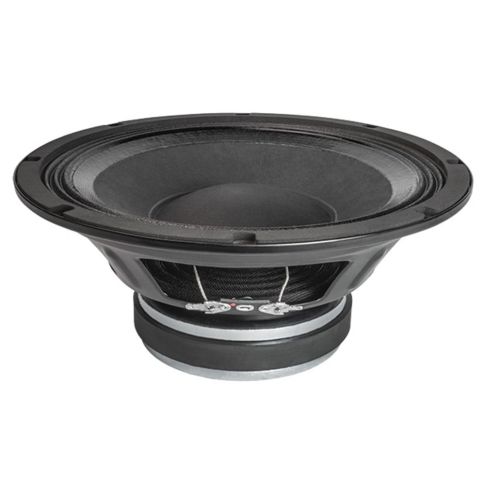

Faital Pro 10FE300 1″ Inch 250W 96dB 8 Ohm LF Driver

The 10FE300 is a high-performance 1″ 250W 96dB Driver. Faital Pro has designed the 10FE300, to deliver the power and performance your PA system deserves.

$169.00

The 10FE300 is a high-performance 1″ 250W 96dB Driver. Faital Pro has designed the 10FE300, to deliver the power and performance your PA system deserves.

Faital Pro 10FE300 1″ Inch 250W 96dB 8 Ohm

The Faital Pro 10FE300 is a high- performance 1″ 250W 96dB LF Driver. Faital Pro has designed the 10FE300, to deliver the power and performance your PA system deserves.

Offering 8 Ohm nominal impedance, the 12FE300 is also capable of delivering a minimum impedance of 6.8 Ohms. Although rated for an AES Power Handling of 250W, it does however provide a Maximum Power Handling of up to 500W.

The 10FE300 provides a frequency range from 50Hz to 4kHz, for a generous overall range response. It also features a slight low-end boost curve between 35Hz and 65Hz.

The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Triple Rol’ design and ‘Polycotton Treated’ finish. Further guiding the high construction standards on the 10FE300, you will find Steel as the Basket Material of choice with a Ferrite Ring Magnet to complete this desirable LF Driver.

Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.

Wwave offers a wide range of Faital Pro products.

  • Premium 1 LF driver
  • 250W RMS power handling
  • 8 Ohm nominal impedance
  • Ferrite RingMagnet
  • Treated Polycotton
  • Triple Roll Cone Surround
  • Steel Basket Material

More Information
Additional Information

NOMINAL SPECIFICATIONS

Nominal Diameter: 250 mm (10 in)

Overall Diameter: 260 mm (10.24 in)

Bolt Circle Diameter: 246 mm (9.69 in)

Baffle Cutout Diameter: 233 mm (9.17 in)

Depth: 110 mm (4.33 in)

Flange and Gasket Thickness: 7 mm (0.28 in)

Net Weight: 3.2 kg (7.1 lb)

Shipping Box: 282 x 280 x 155 mm

(Single Carton Box): (11.1 x 11.0 x 6.10 in)

Shipping Weight: 3.7 kg (8.2 lb)



TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm

Minimum Impedance: 6.8 Ohm

AES Power Handling: 250 W

Maximum Power Handling: 500 W

Sensitivity (1W/1m): 96 dB

Frequency Range: 50÷4000 Hz

Voice Coil Diameter: 52 mm (2.05 in)

Winding Material: Al

Former Material: Glass Fiber

Winding Depth: 13.7 mm (0.54 in)

Magnetic Gap Depth: 8 mm (0.31 in)

Flux Density: 1.1 T

Magnet: Ferrite Ring

Basket Material: Steel

Demodulation: No

Cone Surround: Triple Roll

NET Air Volume filled by Loudspeaker: 1.25 dm^3 (0.044 ft^3)

Spider Profile: 1x variable height waves



THIELE AND SMALL PARAMETERS

Fs: 50 Hz

Re: 5.8 Ohm

Qes: 0.54

Qms: 13.1

Qts: 0.52

Vas: 50.5 dm^3 (1.78 ft^3)

Sd: 358 cm^2 (55.49 in^2)

Xmax: 5.52 mm

Xdamage: 13.1 mm

Mms: 35.9 g

Bl: 11.3 N/A

Le: 0.6 mH

Mmd: 28.2 g

Cms: 0.28 mm/N

Rms: 0.9 kg/s

Eta Zero: 1.20 %

EBP: 93 Hz



PART NUMBER (P/N)

Faston Terminals – 8 Ohm Version: 02504321
