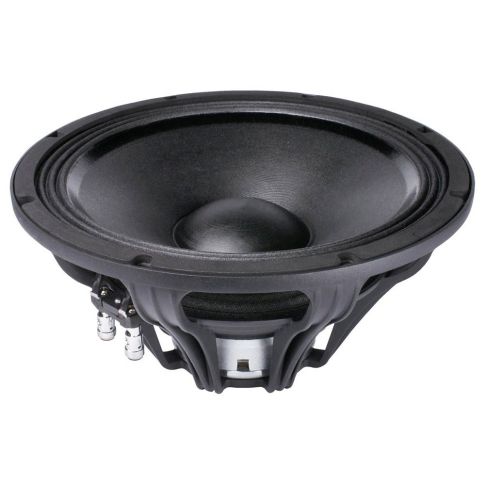

Faital Pro 12FH520 12/16 Ohm 12 Inch Neodymium Speaker
SKU
FA-12FH520-1216
The Faital Pro 12FH520 delivers powerful, clear bass and strong midrange in demanding professional audio setups. This 12 inch neodymium driver offers 600 W AES power handling and 1200 W maximum power with a 16 ohm nominal impedance suited to series wiring. Frequency response spans 50 Hz to 4000 Hz.
Sound engineers and system integrators choose the Faital Pro 12FH520 when they need a compact 12 inch driver that produces tight, musical bass without adding unnecessary weight to the rig.
This neodymium-loaded loudspeaker slots straight into stage monitors, compact subwoofers, bass guitar cabinets and two- or three-way PA enclosures. Its 16 ohm impedance makes it easy to wire multiple units in series while keeping amplifier loads manageable.
Power handling reaches 600 W AES with peaks up to 1200 W, supported by a 77 mm voice coil wound in aluminium on a glass-fibre former. The neodymium slug magnet supplies 1.1 T flux density, delivering high sensitivity and clean output down to 50 Hz.
Despite the substantial power capacity, the entire driver weighs just 4.2 kg thanks to the aluminium basket and efficient magnet design. The triple-roll surround and treated polycotton cone maintain consistent performance through long sessions and repeated transport.
Whether installed in a floor wedge, flown array or portable bass cabinet, the 12FH520 provides extended low-frequency response up to 4000 Hz, allowing designers to cross over higher and reduce the number of components in the system.
- 600 W AES power handling and 1200 W maximum power
- 16 Ohm nominal impedance suitable for series wiring
- 77 mm (3″) voice coil with aluminium winding on glass fibre former
- Neodymium slug magnet with 1.1 T flux density and aluminium demodulation ring
- Frequency response range from 50 Hz to 4000 Hz
- Treated polycotton cone with triple-roll surround for durability and performance
- Aluminium basket for lightweight and thermal efficiency
- Versatile use in stage monitors, subwoofers, bass cabinets, and multi-way loudspeakers
| Additional Information | Nominal Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 284 mm (11.18 in) Depth: 155.75 mm (6.13 in) Net Weight: 4.2 kg (9.3 lb) Nominal Impedance: 16 Ohm AES Power Handling: 600 W Maximum Power Handling: 1200 W Sensitivity (1W/1m): 97 dB Frequency Range: 50÷4000 Hz Voice Coil Diameter: 77 mm (3 in) Magnet: Neodymium Slug |
|---|---|
| Main Sub Category | Audio |
