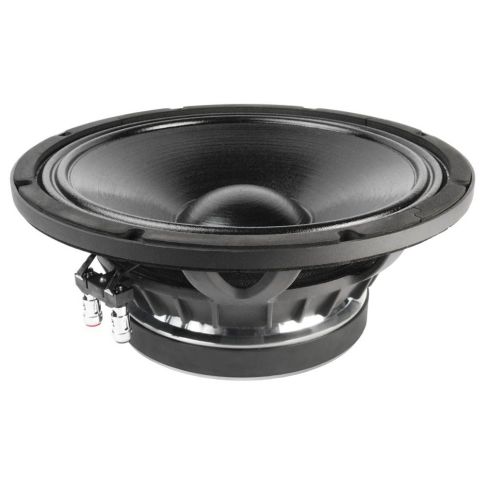

Faital Pro 12FH530 8 Ohm 12 Inch Ferrite Speaker
SKU
FA-12FH530-8
The Faital Pro 12FH530 8 Ohm 12 Inch Ferrite Speaker delivers powerful clean bass and high sensitivity for professional audio work. Built for durability in demanding environments, it remains lightweight at just 7.9 kg while maintaining consistent performance across extended use.
The Faital Pro 12FH530 8 Ohm 12 Inch Ferrite Speaker provides a reliable 12-inch driver solution for systems that need strong low-frequency output without excess weight. Its treated cone and rubber surround work with a cast aluminium basket to maintain structural integrity during long sessions on the road or in fixed installations.
Installers and technicians turn to this woofer for compact ported subwoofers, bass guitar cabinets and floor monitors where space and load-in weight matter. The 3-inch voice coil on a glass fibre former paired with a ferrite magnet supports clean transient response and keeps distortion low even when the program material demands extended low-end reach down to 45 Hz.
In two-way or three-way PA cabinets the driver handles the critical mid-bass region up to 3150 Hz, allowing a single component to cover both punch and clarity. High sensitivity of 98 dB means less amplifier power is required to reach performance levels, which is useful in both touring racks and permanent venue arrays.
With 500 W AES power handling and a 1000 W peak rating, the 12FH530 suits professional stage monitors, installed sound systems and DIY loudspeaker projects alike. Its net weight of 7.9 kg reduces overall cabinet mass while the aluminium demodulation ring helps control voice-coil temperature during extended high-output use.
Whether building new enclosures or refreshing existing wedges, this driver integrates easily into designs that prioritise consistent output, manageable weight and dependable low-frequency performance across multiple applications.
- Professional stage monitors and floor wedges
- Compact ported subwoofers or bass bins
- Bass guitar speaker cabinets
- Two-way or three-way PA loudspeakers (as woofer/mid-bass)
- Touring and installed sound systems
- DIY loudspeaker projects
| Additional Information | Nominal Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 282 mm (11.10 in) Depth: 140 mm (5.51 in) Flange and Gasket Thickness: 12 mm (0.47 in) Net Weight: 7.9 kg (17.4 lb) Nominal Impedance: 8 Ohm Minimum Impedance: 6.4 Ohm AES Power Handling: 500 W Maximum Power Handling: 1000 W Sensitivity (1W/1m): 98 dB Frequency Range: 45÷3150 Hz Voice Coil Diameter: 77 mm (3 in) Winding Material: Al Former Material: Glass Fiber Winding Depth: 18.5 mm (0.73 in) Magnetic Gap Depth: 10.5 mm (0.41 in) Flux Density: 1.2 T Magnet: Ferrite Ring Basket Material: Aluminum Demodulation: Aluminum Ring Cone Surround: M-Roll NET Air Volume filled by Loudspeaker: 2.9 dm^3 (0.102 ft^3) Spider Profile: 1x variable height waves |
|---|---|
| Main Sub Category | Audio |
