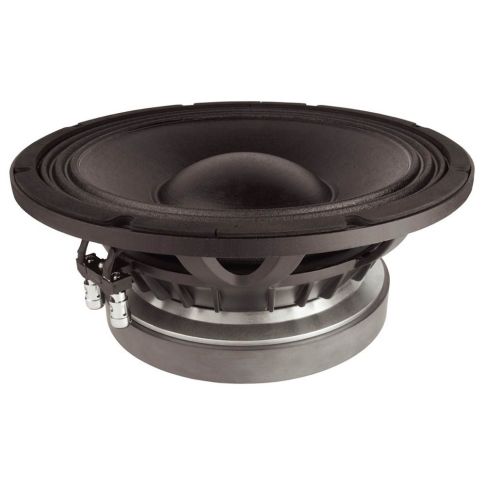

Faital Pro 12HP1030 4 Ohm 12 Inch Ferrite Speaker
SKU
FA-12HP1030-4
The Faital Pro 12HP1030 4 Ohm 12 Inch Ferrite Speaker delivers powerful, accurate bass for professional compact audio systems. It provides high efficiency and deep, controlled low frequencies in demanding sound reinforcement applications.
The Faital Pro 12HP1030 4 Ohm 12 Inch Ferrite Speaker brings reliable low-frequency performance to compact professional audio designs. Its ferrite motor and 4 Ohm impedance make it a practical choice for builders who need strong output without excessive amplifier strain.
This woofer suits compact subwoofer systems, bass bins and active enclosures where space is limited yet high SPL is required. It also performs well in drum-fill monitors, stage cabinets and both touring and fixed-installation reinforcement.
With 1000 W AES power handling and a 100 mm voice coil on a glass-fibre former, the driver maintains control from 45 Hz upward. The aluminium demodulation ring helps keep distortion low even when the system is pushed hard in club or live-sound settings.
The triple-roll surround and aluminium basket provide mechanical stability across repeated load-ins and long-running events. At just 11.1 kg, the unit remains manageable for single-person handling during setup and teardown.
Installers and system designers value the straightforward 4 Ohm load for easier parallel wiring of multiple drivers. The result is clean, punchy bass that integrates smoothly into full-range professional arrays.
- Compact professional subwoofer systems and bass bins
- Powered speaker enclosures and active subwoofers
- Drum-fill and stage monitor cabinets
- Touring and installed sound reinforcement
- High-SPL club and live sound applications
| Additional Information | Nominal Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 282 mm (11.10 in) Depth: 147 mm (5.79 in) Flange and Gasket Thickness: 12 mm (0.47 in) Net Weight: 11.1 kg (24.5 lb) Nominal Impedance: 4 Ohm Minimum Impedance: 4 Ohm AES Power Handling: 1000 W Maximum Power Handling: 2000 W Sensitivity (1W/1m): 94 dB Frequency Range: 45÷1600 Hz Voice Coil Diameter: 100 mm (4 in) Winding Material: Cu Former Material: Glass Fiber Winding Depth: 28.9 mm (1.14 in) Magnetic Gap Depth: 12 mm (0.47 in) Flux Density: 1.1 T Magnet: Ferrite Ring Basket Material: Aluminum Demodulation: Aluminum Ring Cone Surround: Triple Roll NET Air Volume filled by Loudspeaker: 3.7 dm^3 (0.131 ft^3) Spider Profile: 2x non-adjacent symmetrical variable height waves |
|---|---|
| Main Sub Category | Audio |
