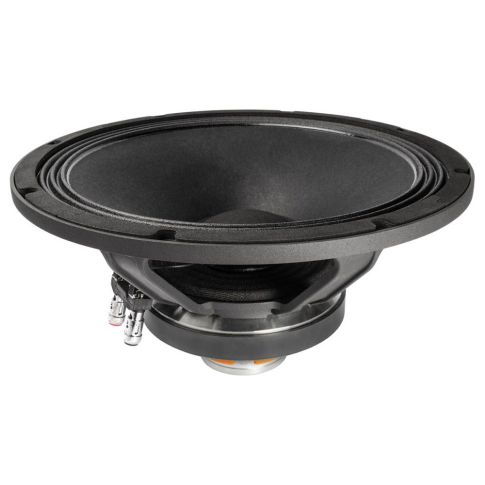

Faital Pro 12HX230 12/16 Ohm 12 Inch Ferrite Speaker
SKU
FA-12HX230-1216
The Faital Pro 12HX230 delivers clear, powerful sound from its 12 inch ferrite driver in 12/16 Ohm configuration. Built for professional stage monitors and portable PA systems, it provides consistent performance across compact installations and mobile setups.
The Faital Pro 12HX230 packs a 12-inch coaxial driver into a compact ferrite package that suits both touring crews and fixed installs.
Its low-frequency section and high-frequency compression driver share the same axis, giving smooth off-axis response whether the cabinet sits on stage as a monitor or flies as a side fill.
At 5.2 kg and 162 mm deep, the unit slips into tight floor wedges or ceiling mounts without adding excess weight to portable PA stacks.
With 250 W AES handling on the woofer and 30 W on the tweeter, plus 96 dB and 107 dB sensitivity respectively, it produces usable level from modest amplification while the 100° dispersion keeps coverage even across small arrays.
The 16 Ohm rating also lets designers series-connect multiple units in column or monitor clusters without overloading typical amplifiers.
- Designed for compact professional stage monitors and floor wedges
- Ideal for portable full-range PA loudspeakers
- Perfect for side fills, front fills, and small column systems
- Suitable for installed sound systems (ceiling or wall mount)
- Built for high-quality compact monitor cabinets
- Supports multi-driver coaxial arrays
| Additional Information | Nom. Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 282 mm (11.10 in) Depth: 162 mm (6.38 in) Flange and Gasket Thickness: 12 mm (0.47 in) Net Weight: 5.2 kg (11.5 lb) Nom. Impedance LF / HF: 16 Ohm / 16 Ohm Minimum Impedance LF / HF: 13.7 Ohm / 13.8 Ohm AES Power Handling LF / HF: 250 W / 30 W Max Power Handling LF / HF: 500 W / 60 W Sensitivity LF / HF: 96 dB / 107 dB Frequency Range LF: 55÷5000 Hz Frequency Range HF: 1500÷20000 Hz Voice Coil Diameter LF / HF: 65 mm (2.56 in) / 37 mm (1.46 in) Winding Material LF / HF: Al / Al Former Material LF / HF: Glass Fiber / Kapton Winding Depth LF / HF: 17.2 mm (0.68 in) / 2.1 mm (0.08 in) Magnetic Gap Depth LF / HF: 8 mm (0.31 in) / 2.6 mm (0.10 in) Flux Density LF / HF: 1.1 T / 1.85 T Min. Cross. Freq.: 1.7 kHz Dispersion Angle: 100° Diaphragm Material: Ketone Polymer Diaphragm Shape: Annular Magnet: Ferrite Ring Basket Material: Aluminum Demodulation: Aluminum Ring Cone Surround: Triple Roll NET Air Volume filled by Loudspeaker: 2.15 dm^3 (0.076 ft^3) Spider Profile: 1x variable height waves |
|---|---|
| Main Sub Category | Audio |
