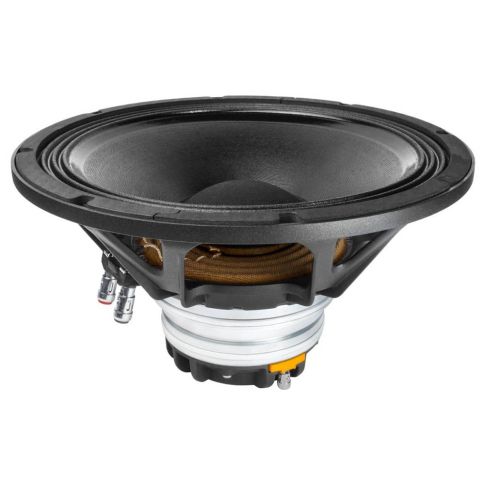

Faital Pro 12HX500 8 Ohm 12 Inch Neodymium Speaker
SKU
FA-12HX500-8
The Faital Pro 12HX500 8 Ohm delivers powerful, clear sound from a compact 12-inch neodymium coaxial driver. It offers 400 W AES power handling for the low-frequency section and 90 W AES for the high-frequency section, suiting professional audio applications.
The Faital Pro 12HX500 8 Ohm brings together a 12-inch woofer and compression driver in a single coaxial unit that produces coherent point-source audio for live and installed systems.
This driver suits stage monitors, floor wedges, side fills and compact full-range PA cabinets where consistent coverage and natural midrange are required. Its 100° dispersion pattern helps reduce hot spots and lobing across the listening area, while the 50 Hz to 20 kHz range covers speech and music without additional low-frequency support in smaller venues.
With 400 W AES handling on the low-frequency section and 90 W AES on the high-frequency section, the 12HX500 manages program peaks up to 800 W and 180 W respectively. The 95 dB LF and 105 dB HF sensitivity ratings allow efficient output from modest amplification, which is useful in portable or installed setups where power draw matters.
At just 5.5 kg the neodymium motor and aluminium basket keep weight low for ceiling mounts, wall arrays and quick-load portable systems. The triple-roll surround and variable-height spider maintain long-term stability under repeated high-excursion use.
Installers and rental companies choose this driver for custom multi-way cabinets or direct replacements in existing monitor wedges where space, weight and reliable performance are priorities.
- Professional stage monitors and floor wedges
- Compact full-range PA loudspeakers
- Side fills, front fills, and portable systems
- Installed sound systems and ceiling/wall mount applications
- High-quality monitor cabinets or custom multi-way designs
| Additional Information | Nom. Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 280 mm (11.02 in) Depth: 175 mm (6.89 in) Net Weight: 5.5 kg (12.1 lb) Nom. Impedance LF / HF: 8 Ohm / 8 Ohm AES Power Handling LF / HF: 400 W / 90 W Max Power Handling LF / HF: 800 W / 180 W Sensitivity LF / HF: 95 dB / 105 dB Frequency Range LF / HF: 50÷4000 Hz / 500÷20000 Hz Dispersion Angle HF: 100° Magnet: Neodymium Ring |
|---|---|
| Main Sub Category | Audio |
