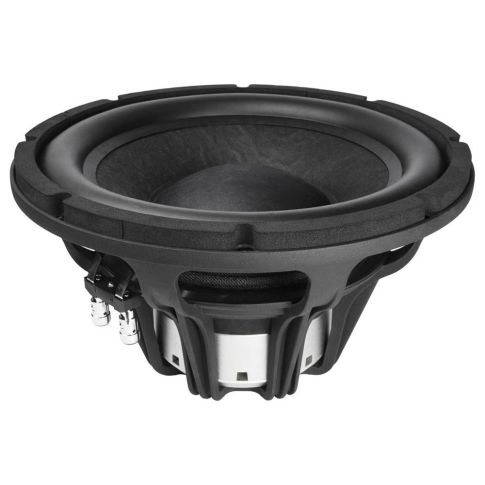

Faital Pro 12RS1066 12/16 Ohm 12 Inch Neodymium Speaker
SKU
FA-12RS1066-1216
The Faital Pro 12RS1066 delivers powerful deep bass from a compact 12 inch neodymium driver. This 12/16 Ohm subwoofer combines high output with 1000 W AES power handling and 2000 W peak capacity. It suits professional audio systems that need controlled low frequencies in a lightweight package.
The Faital Pro 12RS1066 gives sound engineers a compact 12-inch neodymium driver that produces accurate low frequencies without adding unnecessary bulk to a rig.
Its 16 Ohm impedance makes it straightforward to wire in series for multi-driver arrays or tube-amplifier setups, while the 100 mm voice coil and long-excursion design keep bass tight and controlled down to 45 Hz.
With 1000 W AES power handling and a 2000 W peak capacity, the driver handles the demands of high-SPL club systems and festival stages without strain. The neodymium ring magnet and aluminium demodulation ring deliver strong motor force yet keep the overall weight to just 6.6 kg, simplifying transport and installation.
Installers place the 12RS1066 in compact subwoofer cabinets for touring sound reinforcement, drum-fill monitors and powered enclosures where space and weight are limited. Its 92 dB sensitivity helps maintain system efficiency when multiple units are flown or stacked.
Whether you are building a portable PA, upgrading a venue sub or assembling a drum-fill package, this driver offers reliable performance in a format that fits modern professional workflows.
- 1000 W AES power handling with 2000 W program capability
- 12-inch (300 mm) long-excursion neodymium subwoofer for deep, controlled bass
- High efficiency and clarity starting from 45 Hz frequency range
- Lightweight neodymium magnet and aluminum demodulation ring for strong motor force
- Designed for compact professional subwoofer systems, powered enclosures, drum-fill monitors, and touring sound reinforcement
| Additional Information | Nominal Diameter: 300 mm (12 in) Overall Diameter: 316 mm (12.44 in) Bolt Circle Diameter: 298.5 mm (11.75 in) Baffle Cutout Diameter: 282 mm (11.10 in) Depth: 176.5 mm (6.95 in) Flange and Gasket Thickness: 20.2 mm (0.80 in) Net Weight: 6.6 kg (14.6 lb) Nominal Impedance: 16 Ohm Minimum Impedance: 14.5 Ohm AES Power Handling (1): 1000 W Maximum Power Handling (2): 2000 W Sensitivity (1W/1m): 92 dB Frequency Range: 45÷2500 Hz Voice Coil Diameter: 100 mm (4 in) Winding Material: Cu Former Material: Glass Fiber Winding Depth: 28.9 mm (1.14 in) Magnetic Gap Depth: 12 mm (0.47 in) Flux Density: 1.22 T Magnet: Neodymium Ring Basket Material: Aluminum Demodulation: Aluminum Ring Cone Surround (3): Half Roll NET Air Volume filled by Loudspeaker: 2.9 dm^3 (0.102 ft^3) Spider Profile: 2x non-adjacent symmetrical variable height waves |
|---|---|
| Main Sub Category | Audio |
