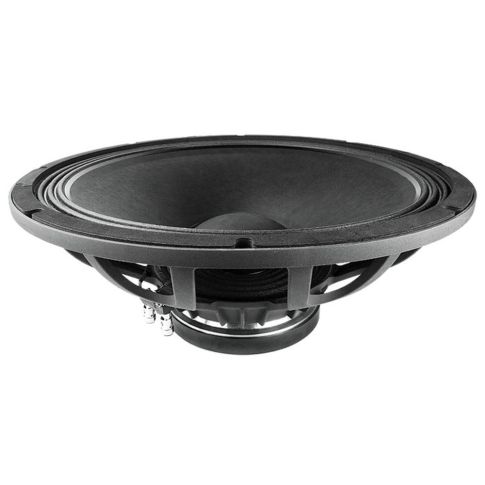

Faital Pro 18FH510 18″ Inch 600W 98dB 8 Ohm LF Driver

The 18FH510 is a high-performance 18″ 600W 98dB LF Driver designed to deliver the power and performance in your PA systems needs.

$499.00

The 18FH510 is a high-performance 18″ 600W 98dB LF Driver designed to deliver the power and performance in your PA systems needs.

Faital Pro 18FH510 18″ Inch 600W 98dB 8 Ohm LF Driver

The Faital Pro 18FH510 is a high-performance 18″ 600W 98dB LF Driver. Faital Pro has designed the 18FH510, to deliver the power and performance your PA system deserves.

Delivering an 8 Ohm nominal impedance, the 18FH510 is also capable of delivering a minimum impedance of 6.5 Ohms. Although rated for a massive AES Power Handling of 600W, it does however provide a Maximum Power Handling of up to 1200W.

The 18FH510 provides a frequency range from 30Hz to 2.5kHz, for a generous overall LF range response. It also features a slight low-end boost curve between 20Hz and 40Hz.

The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Triple Roll’ design and ‘Polycotton Treated’ finish. Further guiding the high construction standards on the 18FH510, you will find Aluminum as the Basket Material of choice with a Ferrite Ring Magnet to complete this desirable LF Driver.

Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.

Also available in 4 Ohms.

Wwave offers a wide range of Faital Pro products.

  • High quality 18″ LF/Mid driver
  • 600W RMS power handling
  • 8 Ohm nominal impedance
  • Ferrite Ring magnet with Triple Rol Cone Surround

More Information
Additional Information

NOMINAL SPECIFICATIONS

Nominal Diameter: 460 mm (18 in)

Overall Diameter: 460 mm (18.11 in)

Bolt Circle Diameter: 440 mm (17.32 in)

Baffle Cutout Diameter: 421 mm (16.57 in)

Depth: 201.5 mm (7.93 in)

Flange and Gasket Thickness: 13.7 mm (0.54 in)

Net Weight: 8.8 kg (19.3 lb)

Shipping Box: 503 x 500 x 258 mm:

(Single Carton Box): (19.8 x 19.7 x 10.2 in)

Shipping Weight: 10.3 kg (22.7 lb)



TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm

Minimum Impedance: 6.5 Ohm

AES Power Handling: 600 W

Maximum Power Handling: 1200 W

Sensitivity (1W/1m): 98 dB

Frequency Range: 30÷2500 Hz

Voice Coil Diameter: 77 mm (3 in)

Winding Material: Cu

Former Material: Glass Fiber

Winding Depth: 22 mm (0.87 in)

Magnetic Gap Depth: 10.5 mm (0.41 in)

Flux Density: 1.2 T

Magnet: Ferrite Ring

Basket Material: Aluminum

Demodulation: No

Cone Surround: Triple Roll

NET Air Volume filled by Loudspeaker: 6.1 dm^3 (0.215 ft^3)

Spider Profile: 1x variable height waves



THIELE AND SMALL PARAMETERS

Fs: 30 Hz

Re: 5.1 Ohm

Qes: 0.30

Qms: 13.6

Qts: 0.29

Vas: 411.9 dm^3 (14.55 ft^3)

Sd: 1207 cm^2 (187.09 in^2)

Xmax: 9.25 mm

Xdamage: 21 mm

Mms: 139.0 g

Bl: 21 N/A

Le: 1.06 mH

Mmd: 91.6 g

Cms: 0.20 mm/N

Rms: 1.9 kg/s

Eta Zero: 3.56 %

EBP: 100 Hz



PART NUMBER (P/N)

Push Terminals – 8 Ohm Version: 04604080
