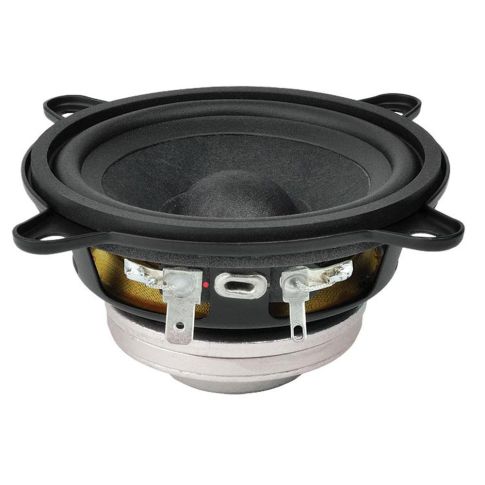

Faital Pro 3FE22 3″ Inch 20W 91dB 8 Ohm LF Driver

The 3FE22 is a high-performance 3″ 20W 91dB Driver. Faital Pro has designed the 3FE22, to deliver the power and performance your PA system deserves.

$49.00

The 3FE22 is a high-performance 3″ 20W 91dB Driver. Faital Pro has designed the 3FE22, to deliver the power and performance your PA system deserves.

Faital Pro 3FE22 3″ Inch 20W 91dB 8 Ohm LF Driver

The Faital Pro 3FE22 is a high-performance 3″ 20W 91dB LF Driver. Faital Pro has designed the 3FE22, to deliver the power and performance your PA system deserves.

Delivering an 8 Ohm nominal impedance, the 3FE22 is also capable of delivering a minimum impedance of 6.2 Ohms. Although rated for a massive AES Power Handling of 20W, it does however provide a Maximum Power Handling of up to 40W.

The 3FE22 provides a frequency range from 100Hz to 20kHz, for a generous overall range response. It also features a slight low- end boost curve between 50Hz and 200Hz.

The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Half Roll’ design and ‘NBR (Rubber)’ finish. Further guiding the high construction standards on the 3FE22, you will find Steel as the Basket Material of choice with a Neodymium Ring Magnet to complete this desirable LF Driver.

Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.

Also available in 4 and 16 Ohms.

Wwave offers a wide range of Faital Pro products.

  • Premium 3 LF driver
  • 20W RMS power handling
  • 8 Ohm nominal impedance
  • Neodymium Ring Magnet
  • NBR (Rubber)
  • Half Roll Cone Surround
  • Steel Basket Material

More Information
Additional Information

NOMINAL SPECIFICATIONS

Nominal Diameter: 80 mm (3 in)

Overall Diameter: 105.6/81 mm (4.16/3.19 in)

Bolt Circle Diameter: 92 mm (3.62 in)

Baffle Cutout Diameter: 73.6 mm (2.90 in)

Depth: 46 mm (1.81 in)

Flange and Gasket Thickness: 6.5 mm (0.26 in)

Net Weight: 240 g (0.53 lb)

Shipping Box: 285 x 285 x 255 mm



TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm

Minimum Impedance: 6.2 Ohm

AES Power Handling: 20 W

Maximum Power Handling: 40 W

Sensitivity (1W/1m): 91 dB

Frequency Range: 100÷20000 Hz

Voice Coil Diameter: 19 mm (0.75 in)

Winding Material: Al

Former Material: Kapton

Winding Depth: 5 mm (0.20 in)

Magnetic Gap Depth: 4 mm (0.16 in)

Flux Density: 1.4 T

Magnet: Neodymium Ring

Basket Material: Steel

Demodulation: No

Cone Surround: Half Roll

NET Air Volume filled by Loudspeaker: 0.060 dm^3 (0.002 ft^3)

Spider Profile: 1x constant height waves



THIELE AND SMALL PARAMETERS

Fs: 110 Hz

Re: 6.2 Ohm

Qes: 0.52

Qms: 5.0

Qts: 0.47

Vas: 1.3 dm^3 (0.04 ft^3)

Sd: 33 cm^2 (5.12 in^2)

Xmax: 1.83 mm

Xdamage: 7.3 mm

Mms: 2.5 g

Bl: 4.5 N/A

Le: 0.15 mH

Mmd: 2.3 g

Cms: 0.84 mm/N

Rms: 0.3 kg/s

Eta Zero: 0.31 %

EBP: 212 Hz



PART NUMBER (P/N)

Faston Terminals – 8 Ohm Version: 00804083
