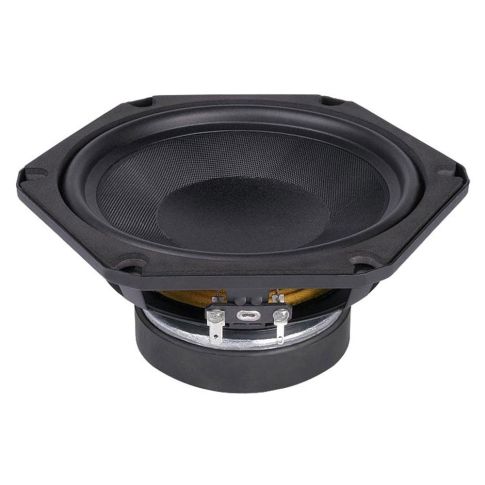

Faital Pro 6FE100 6″ Inch 100W 91dB 8 Ohm LF Driver
SKU
FA-6FE100
The 6FE100 is a high-performance 6″ 100W 91dB Driver. Faital Pro has designed the 6FE100, to deliver the power and performance your PA system deserves.
Faital Pro 6FE100 6″ Inch 100W 91dB 8 Ohm LF Driver
The Faital Pro 6FE100 is a high-performance 6″ 100W 91dB LF Driver. Faital Pro has designed the 6FE100, to deliver the power and performance your PA system deserves.
Offering 8 Ohm nominal impedance, the 6FE100 is also capable of delivering a minimum impedance of 5.9 Ohms. Although rated for a massive AES Power Handling of 100W, it does however provide a Maximum Power Handling of up to 200W.
The 6FE100 provides a frequency range from 63Hz to 5Hz, for a generous overall LF range response. It also features a slight low- end boost curve between 30Hz and 90Hz.
The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Half Roll’ design and ‘NBR (Rubber)’ finish. Further guiding the high construction standards on the 6FE100, you will find Steel as the Basket Material of choice with a Ferrite Ring Magnet to complete this desirable LF Driver.
Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.
Wwave offers a wide range of Faital Pro products.
- Premium 6″ LF driver
- 100W RMS power handling
- 8 Ohm nominal impedance
- Ferrite Ring Magnet
- NBR (Rubber)
- Half Roll Cone Surround
- Steel Basket Material
| Additional Information | NOMINAL SPECIFICATIONS Nominal Diameter: 160 mm (6 in) Overall Diameter: 181.2/164 mm (7.13/6.46 in) Bolt Circle Diameter: 167 mm (6.57 in) Baffle Cutout Diameter: 147 mm (5.79 in) Depth: 84.5 mm (3.33 in) Flange and Gasket Thickness: 8 mm (0.31 in) Net Weight: 1.2 kg (2.6 lb) Shipping Box: 393 x 380 x 128 mm
TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 5.9 Ohm AES Power Handling: 100 W Maximum Power Handling: 200 W Sensitivity (1W/1m): 91 dB Frequency Range: 63÷5000 Hz Voice Coil Diameter: 32 mm (1.26 in) Winding Material: Cu Former Material: Kapton Winding Depth: 12.5 mm (0.49 in) Magnetic Gap Depth: 6 mm (0.24 in) Flux Density: 1 T Magnet: Ferrite Ring Basket Material: Steel Demodulation: Aluminum Ring Cone Surround: Half Roll NET Air Volume filled by Loudspeaker: 0.4 dm^3 (0.014 ft^3) Spider Profile: 1x constant height waves
THIELE AND SMALL PARAMETERS Fs: 61 Hz Re: 5.4 Ohm Qes: 0.60 Qms: 6.0 Qts: 0.55 Vas: 15.1 dm^3 (0.53 ft^3) Sd: 149 cm^2 (23.10 in^2) Xmax: 5.25 mm Xdamage: 13.15 mm Mms: 14.0 g Bl: 6.8 N/A Le: 0.5 mH Mmd: 11.9 g Cms: 0.48 mm/N Rms: 0.90 kg/s Eta Zero: 0.53 % EBP: 102 Hz
PART NUMBER (P/N) Faston Terminals – 8 Ohm Version: 01603942 |
|---|---|
