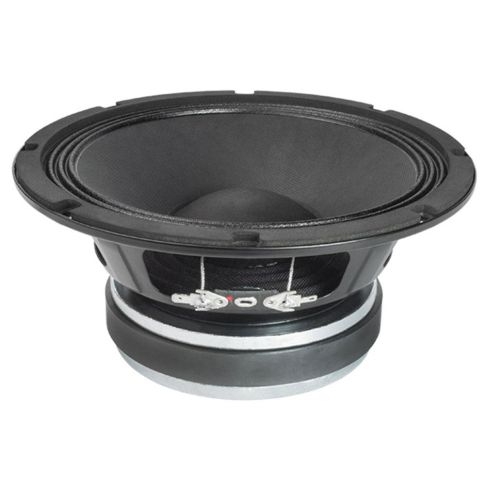

Faital Pro 8FE300 8″ Inch 250W 95dB 8 Ohm LF Driver
SKU
FA-8FE300
The 8FE300 is a high-performance 8″ 250W 95dB Driver. Faital Pro has designed the 8FE300, to deliver the power and performance your PA system deserves.
Faital Pro 8FE300 8″ Inch 250W 95dB 8 Ohm LF Driver
The Faital Pro 8FE300 is a high-performance 8″ 250W 95dB LF Driver. Faital Pro has designed the 8FE300, to deliver the power and performance your PA system deserves.
Offering an 8 Ohm nominal impedance, the 8FE300 is also capable of delivering a minimum impedance of 6.9 Ohms. Although rated for a massive AES Power Handling of 250W, it does however provide a Maximum Power Handling of up to 500W.
The 8FE300 provides a frequency range from 80Hz to 5Hz, for a generous overall LF range response. It also features a slight low- end boost curve between 50Hz and 100Hz.
The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Triple Roll’ design and ‘Polycotton Treated’ finish. Further guiding the high construction standards on the 8FE300, you will find Steel as the Basket Material of choice with a Ferrite Ring Magnet to complete this desirable LF Driver.
Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.
Wwave offers a wide range of Faital Pro products.
- Premium 8″ LF driver
- 250W RMS power handling
- 8 Ohm nominal impedance
- Ferrite Ring Magnet
- Treated Polycotton
- Triple Roll Cone Surround
- Steel Basket Material
| Additional Information | NOMINAL SPECIFICATIONS Nominal Diameter: 200 mm (8 in) Overall Diameter: 209 mm (8.23 in) Bolt Circle Diameter: 197.5 mm (7.78 in) Baffle Cutout Diameter: 183 mm (7.20 in) Depth: 95 mm (3.74 in) Flange and Gasket Thickness: 7 mm (0.28 in) Net Weight: 3.1 kg (6.8 lb) Shipping Box: 227 x 224 x 113 mm (Single Carton Box): (8.93 x 8.81 x 4.44 in) Shipping Weight: 3.2 kg (7.1 lb)
TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 6.9 Ohm AES Power Handling: 250 W Maximum Power Handling: 500 W Sensitivity (1W/1m): 95 dB Frequency Range: 80÷5000 Hz Voice Coil Diameter: 52 mm (2.05 in) Winding Material: Al Former Material: Glass Fiber Winding Depth: 13.7 mm (0.54 in) Magnetic Gap Depth: 8 mm (0.31 in) Flux Density: 1.1 T Magnet: Ferrite Ring Basket Material: Steel Demodulation: No Cone Surround: Triple Roll NET Air Volume filled by Loudspeaker: 0.7 dm^3 (0.025 ft^3) Spider Profile: 1x variable height waves
THIELE AND SMALL PARAMETERS Fs: 70 Hz Re: 5.8 Ohm Qes: 0.46 Qms: 13.4 Qts: 0.44 Vas: 15.7 dm^3 (0.55 ft^3) Sd: 223 cm^2 (34.57 in^2) Xmax: 5.52 mm Xdamage: 11.6 mm Mms: 22.9 g Bl: 11.3 N/A Le: 0.55 mH Mmd: 19.1 g Cms: 0.23 mm/N Rms: 0.8 kg/s Eta Zero: 1.14 % EBP: 152 Hz
PART NUMBER (P/N) Faston Terminals – 8 Ohm Version: 02004322 |
|---|---|
