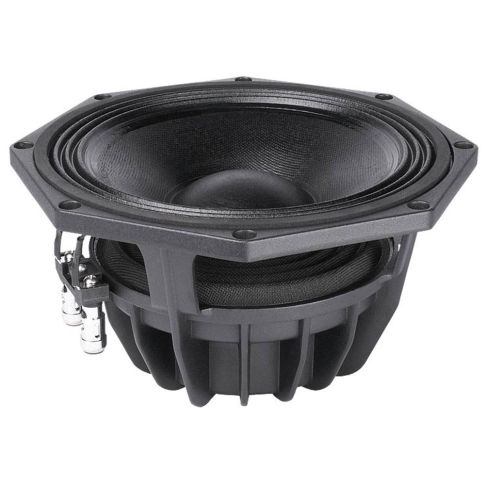

Faital Pro 8PR200 8″ Inch 200W 95dB 8 Ohm LF Driver
SKU
FA-8PR200
The 8PR200 is a high-performance 8″ 200W 95dB Driver. Faital Pro has designed the 10FE300, to deliver the power and performance your PA system deserves.
Faital Pro 8PR200 8″ Inch 200W 95dB 8 Ohm LF Driver
The Faital Pro 8PR200 is a high-performance 8″ 200W 95dB LF Driver. Faital Pro has designed the 8PR200, to deliver the power and performance your PA system deserves.
Offering 8 Ohm nominal impedance, the 8PR200 is also capable of delivering a minimum impedance of 6.4 Ohms. Although rated for a massive AES Power Handling of 200W, it does however provide a Maximum Power Handling of up to 400W.
The 8PR200 provides a frequency range from 70Hz to 5Hz, for a generous overall LF range response. It also features a slight low- end boost curve between 40Hz and 60Hz.
The construction is of high standards to deliver the performance characteristics your PA system deserves. You will appreciate the ‘Cone Surround’ with its ‘Triple Rol’ design and ‘Polycotton Treated’ finish. Further guiding the high construction standards on the 8PR200, you will find Aluminum as the Basket Material of choice with a Neodymium Ring Magnet to complete this desirable LF Driver.
Whether you build your own custom PA systems or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.
Also available in 16 Ohms.
Wwave offers a wide range of Faital Pro products.
- Premium 8″ LF driver
- 200W RMS power handling
- 8 Ohm nominal impedance
- Neodymium Ring Magnet
- Treated Polycotton
- Triple Roll Cone Surround
- Aluminum Basket Material
| Additional Information | NOMINAL SPECIFICATIONS Nominal Diameter: 200 mm (8 in) Overall Diameter: 223.75/207.9 mm (8.81/8.18 in) Bolt Circle Diameter: 210 mm (8.27 in) Baffle Cutout Diameter: 183 mm (7.20 in) Depth: 116.7 mm (4.59 in) Flange and Gasket Thickness: 10.7 mm (0.42 in) Net Weight: 2.1 kg (4.6 lb) Shipping Box: 235 x 235 x 155 mm (Single Carton Box): (9.3 x 9.3 x 6.1 in) Shipping Weight: 2.5 kg (5.5 lb)
TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 6.4 Ohm AES Power Handling: 200 W Maximum Power Handling: 400 W Sensitivity (1W/1m): 95 dB Frequency Range: 70÷5000 Hz Voice Coil Diameter: 52 mm (2 in) Winding Material: Al Former Material: Glass Fiber Winding Depth: 19.3 mm (0.76 in) Magnetic Gap Depth: 9 mm (0.35 in) Flux Density: 1.15 T Magnet: Neodymium Ring Basket Material: Aluminum Demodulation: Aluminum Ring
THIELE AND SMALL PARAMETERS Fs: 58 Hz Re: 5.1 Ohm Qes: 0.38 Qms: 9.4 Qts: 0.37 Vas: 16.9 dm^3 (0.60 ft^3) Sd: 209 cm^2 (32.40 in^2) Xmax: 8.15 mm Xdamage: 13.5 mm Mms: 27.2 g Bl: 11.5 N/A Le: 0.55 mH Mmd: 23.8 g Cms: 0.28 mm/N Rms: 1.1 kg/s Eta Zero: 0.84 % EBP: 153 Hz
PART NUMBER (P/N) Push Terminals – 8 Ohm Version: 02003993 |
|---|---|
