Faital Pro HF100 – 1″ Inch 30W 108dB 8 Ohm HF Driver
SKU
FA-HF100
The HF100 is a high-performance 1″ 30W 108dB HF Driver designed to deliver the power and performance in your PA systems needs.
Faital Pro HF100 – 1″ Inch 30W 108dB 8 Ohm HF Driver

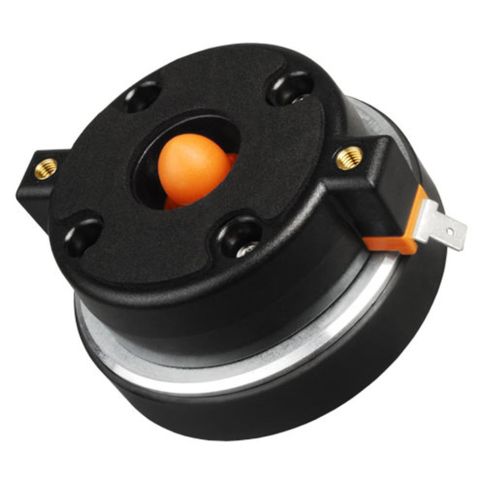

The Faital Pro HF100 is a high-performance 1″ 30W 108dB HF Driver. Faital Pro has designed the HF100, to deliver the power and performance in your PA system needs. Delivering an 8 Ohm nominal impedance, the HF100 is also capable of delivering a minimum impedance of 7 Ohms. Although rated for AES Power Handling of 30W, it does provide a Maximum Power Handling of up to 60W. The HF100 provides a frequency range from 1.5÷20 kHz, for a generous overall range response. It also features a Mid boost peak between 1.5K and 2K.
Whether you are building your own custom PA system or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.
Wwave offers a wide range of Faital Pro products.
Driver mounted on a 1″ 50° x 40° Horn
- 2 Hours Test According to AES 2-1984 Rev. 2003
- Maximum power is defined as 3dB greater than nominal power.
- 12 dB/oct or higher slope high-pass filter
- Averaged within the frequency range
- The phase plug is recessed from the driver’s exit which is at the end of a conical adaptation horn.
| Additional Information | TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 7 Ohm AES Power Handling (1): 30 W Maximum Power Handling (2): 60 W Minimum Crossover Frequency (3): 2 kHz Sensitivity (1W/1m) (4): 108 dB Frequency Range: 1.5÷20 kHz Voice Coil Diameter: 25 mm (0.98 in) Winding Material: Al Former Material: Kapton Diaphragm Material: Ketone Polymer Diaphragm Shape: Dome Winding Depth: 1.7 mm (0.07 in) Magnetic Gap Depth: 2 mm (0.08 in) Flux Density: 1.7 T Magnet: Ferrite Ring Re: 6 Ohm Phase Plug Design: Radial Exit Angle (5): 9° Conical NET Air Volume filled by HF Driver: 0.25 dm^3 (0.009 ft^3)
NOMINAL SPECIFICATIONS Throat Diameter: 25.4 mm (1 in) Overall Diameter: 108 mm (4.02 in) 180° Mounting Holes Diameter (2xM6): 76 mm (2.99 in) Depth: 55 mm (2.17 in) Net Weight: 830 g (1.8 lb) Shipping BoxL: 147 x 130 x 82 mm (Single carton box): (5.8 x 5.1 x 3.2 in) Shipping Weight: 862 g (1.90 lb)
PART NUMBER (P/N) Faston Terminals – 8 Ohm Version: 00254029 |
|---|---|
