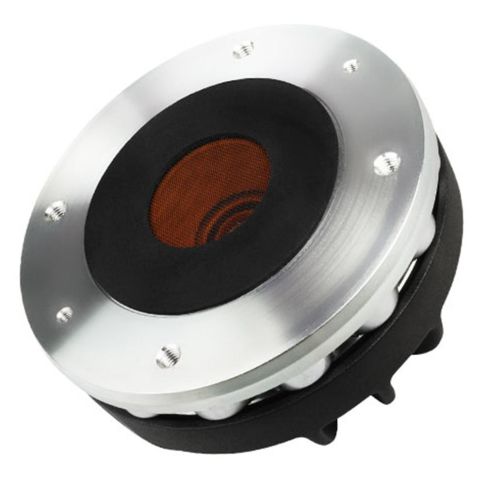

Faital Pro HF146R 1.4″ Inch 80W 109dB 8 Ohm HF Driver
SKU
FA-HF146R
The HF146R is a high-performance 1.4″ 80W 109dB HF Driver designed to deliver the power and performance in your PA systems needs.
Faital Pro HF146R 1.4″ Inch 80W 109dB 8 Ohm HF Driver
The Faital Pro HF146R is a high-performance 1.4” 80W 109dB HF Driver. Faital Pro has designed the HF146R, to deliver the power and performance in your PA system needs.
Delivering an 8 Ohm nominal impedance, the HF146R is also capable of delivering a minimum impedance of 6.8 Ohms. Although rated for AES Power Handling of 80W, it does however provide a Maximum Power above 0.9 kHz of up to 160W.
The HF100 provides a frequency range from 0.7÷18 kHz, for a generous overall range response. It also features a Low boost peak between 500Hz and 600Hz.
Whether you are building your own custom PA system or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.
Also available in 16 Ohms.
Wwave offers a wide range of Faital Pro products.
Driver mounted on FaitalPRO LTH142 Horn
- Perforated suspension for acoustic tuning
- 2 Hours Test According to AES 2-1984 Rev. 2003
- Maximum power is defined as 3dB greater than nominal power.
- 12 dB/oct or higher slope high-pass filter
- Averaged within the frequency range
- The phase plug is recessed from the driver’s exit which is at the end of a conical adaptation horn.
| Additional Information | TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 6.8 Ohm AES Power above 0.9 kHz: 80 W AES Power above 0.65 kHz: 40 W Maximum Power above 0.9 kHz: 160 W Maximum Power above 0.65 kHz: 80 W Minimum Crossover Frequency: 0.9 kHz Sensitivity (1W/1m): 109 dB Frequency Range: 0.7÷18 kHz Voice Coil Diameter: 65 mm (2.56 in) Winding Material: Al Former Material: Kapton Diaphragm Material: Ketone Polymer Diaphragm Shape: Dome Winding Depth: 3.75 mm (0.15 in) Magnetic Gap Depth: 4.2 mm (0.17 in) Flux Density: 1.7 T Magnet: Neodymium Slug Crown Re: 5.5 Ohm Phase Plug Design: Annular Exit Angle: 29° Conical NET Air Volume filled by HF Driver: 0.55 dm^3 (0.019 ft^3)
NOMINAL SPECIFICATIONS Throat Diameter: 35.6 mm (1.4 in) Overall Diameter: 123 mm (4.84 in) 90° Mounting Holes Diameter (4xM6): 102 mm (4.02 in) Depth: 63.5 mm (2.5 in) Net Weight: 2 kg (4.4 lb) Shipping Box: 185 x 170 x 122 mm (Single carton box): (7.3 x 6.7 x 4.8 in) Shipping Weight: 2.3 kg (5.1 lb)
PART NUMBER (P/N) Push Terminals – 8 Ohm Version: TBA
|
|---|---|
