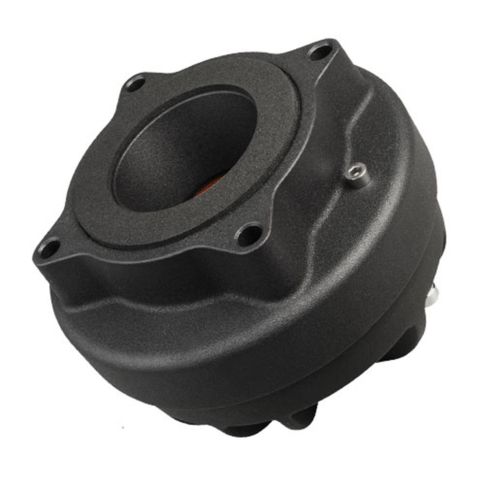

Faital Pro HF206 2 Inch 80W 109 dB 8 Ohm HF Driver

The HF206 is a high-performance 2″ 80W 109dB HF Driver designed to deliver the power and performance in your PA systems needs.

$599.00

The HF206 is a high-performance 2″ 80W 109dB HF Driver designed to deliver the power and performance in your PA systems needs.

Faital Pro HF206 2 Inch 80W 109 dB 8 Ohm HF Driver

The Faital Pro HF206 is a high-performance 2″ 80W 109dB HF Driver. Faital Pro have designed the HF206, to deliver the power and performance in your PA system needs.

Delivering an 8 Ohm nominal impedance, the HF146R is also capable of delivering a minimum impedance of 7.4 Ohms. Although rated for AES Power Handling of 80W, it does however provide a Maximum Power above 0.9 kHz of up to 160W.

The HF206 provides a frequency range from 0.5÷18 kHz, for a generous overall range response. It also features a Low boost peak between 450Hz and 500Hz.

Whether you are building your own custom PA system or are simply looking for replacement drivers; Faital Pro has you covered with only the very best quality and performance.

Also available in 16 Ohms.

Driver mounted on a 2” 90° x 40° Horn

  • 2 Hours Test According to AES 2-1984 Rev. 2003
  • Maximum power is defined as 3dB greater than nominal power.
  • 12 dB/oct or higher slope high-pass filter
  • Averaged within the frequency range
  • The phase plug is recessed from the driver’s exit which is at the end of a conical adaptation horn.

More Information
Additional Information

TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm

Minimum Impedance: 7.4 Ohm

AES Power above 0.9 kHz: 80 W

AES Power above 0.65 kHz: 40 W

Maximum Power above 0.9 kHz: 160 W

Maximum Power above 0.65 kHz: 80 W

Minimum Crossover Frequency: 0.9 kHz

Sensitivity (1W/1m): 109 dB

Frequency Range: 0.5÷18 kHz

Voice Coil Diameter: 65 mm (2.56 in)

Winding Material: Al

Former Material: Kapton

Diaphragm Material: Ketone Polymer

Diaphragm Shape: Dome

Winding Depth: 3 mm (0.12 in)

Magnetic Gap Depth: 4.2 mm (0.17 in)

Flux Density: 1.7 T

Magnet: Neodymium Slug Crown

Re: 5.5 Ohm

Phase Plug Design: Annular

Exit Angle (5): 30° Conical

NET Air Volume filled by HF Driver: 0.75 dm^3 (0.026 ft^3)



NOMINAL SPECIFICATIONS

Throat Diameter: 50.8 mm (2 in)

Overall Diameter: 130.5 mm (5.14 in)

90° Mounting Holes Diameter (4xM6): 102 mm (4.02 in)

Depth: 91.5 mm (3.60 in)

Net Weight: 2.3 kg (5.1 lb)

Shipping Box: 185 x 170 x 122 mm



PART NUMBER (P/N)

Push Terminals – 8 Ohm Version: 00654152
