Laserworld Tarm 5 Pure Diode RGB Laser
SKU
TARM5

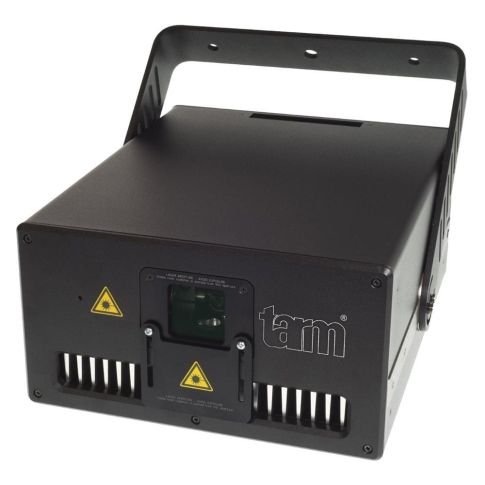

Laserworld Tarm 5
The Laserworld Tarm 5 show laser projector is a full color whitelight RGB laser systems with full analog color modulation and diode-only equipment. The guaranteed output power is specified at 5,000 mW after optics. Boasting great beam specifications with a diameter of ca. 3.5 mm and a beam divergence of approx. <1.0 mrad (full angle). It is equipped with a bright red (1,400 mW / 638 nm), a green (1,500 mW / 520 nm), and a blue (3,000 mW / 450 nm) diode laser source.
The scanners are very fast with 45 ° ILDA standard and allow for a maximum scan angle of 50° (@30 kpps). Thus they are well graphics capable and suitable for professional laser applications.
Optionally as an upgrade available: CT-6210H scanners incl. RTI RayScan driver with 60 ° ILDA and a max. scan angle of 68° (@35 kpps).
The housing of the tarm 5 is built very rugged and in a dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum.
The mounting bracket allows for hanging and for upright mounting of the laser system.
The tarm 5 is especially suitable for show laser applications in clubs and bars and can be used by beginners as well as professionals.
Laserworld Tarm 5
The Laserworld Tarm 5 show laser projector is a full color whitelight RGB laser systems with full analog color modulation and diode-only equipment. The guaranteed output power is specified at 5,000 mW after optics. Boasting great beam specifications with a diameter of ca. 3.5 mm and a beam divergence of approx. <1.0 mrad (full angle). It is equipped with a bright red (1,400 mW / 638 nm), a green (1,500 mW / 520 nm), and a blue (3,000 mW / 450 nm) diode laser source.
The scanners are very fast with 45 ° ILDA standard and allow for a maximum scan angle of 50° (@30 kpps). Thus they are well graphics capable and suitable for professional laser applications.
Optionally as an upgrade available: CT-6210H scanners incl. RTI RayScan driver with 60 ° ILDA and a max. scan angle of 68° (@35 kpps).
The housing of the tarm 5 is built very rugged and in a dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum.
The mounting bracket allows for hanging and for upright mounting of the laser system.
The tarm 5 is especially suitable for show laser applications in clubs and bars and can be used by beginners as well as professionals.
- 5’000 mW guaranteed output power
- Ultra smooth graphics from the 45 kpps scanners
- Pure diode RGB laser with analog colour mixing
- Capable of pure white colour
- Impressive beam spec with 1.0 mrad divergence
- Low power consumption
- Adjust colour intensity via controls on the back
- Trigger saved ILDA shows via ArtNET or DMX
- Fitted with RJ45 safety switch port, on/off key, and scan safe guard
- MANUFACTURED IN GERMANY, with high precision diodes array modules
| Additional Information | Guaranteed power at aperture: 5’000 mW Power Red: 1’400 mW / 638 nm Power Green: 1’500 mW / 520 nm Power Blue: 3’000 mW / 450 nm Beam Specifications (full angle): ca. 3.5 mm / <1.0 mrad Laser Sources: Diode Laser Class: 4 Operation Modes: ILDA Scanner: 45 ° ILDA; optional as upgrade: CT-6210H incl. Rti RayScan driver: 60 ° ILDA, max. 68° (@35 kpps). Scan Angle max.: max. 50° (@30 kpps) Accessories: browser interface for calibration, key, power cable, manual, interlock connector Power Supply: 85 V – 250 V / AC Power Consumption: 320 W Dimensions: 320 x 260 x 140 mm Weight: 11.5 kg |
|---|---|
| Audio Options | Wireless |
| Event Size | Up to 20 |
