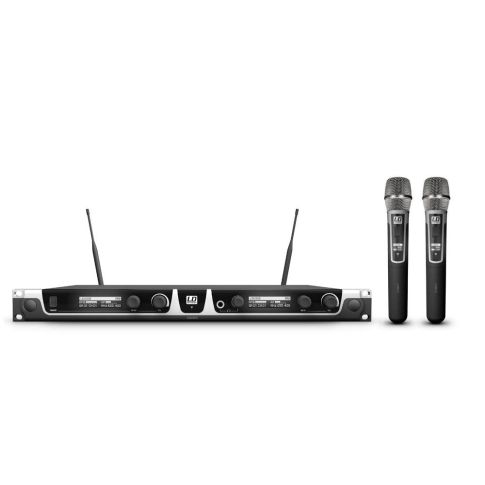

LD System LDU506HHC2 x2 Condenser Handheld Microphone

LD System LDU506HHC2 x2 Condenser Handheld Microphone

LD System LDU506HHC2 x2 Condenser Handheld Microphone are from the U500® Series vocal sets and were developed in Germany by LD Systems  professional technology and sound quality at an affordable pricepoint. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. And available in the B6 frequency bands:655 – 679 MHz, where 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy setup.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

$1,199.00

LD System LDU506HHC2 x2 Condenser Handheld Microphone

LD System LDU506HHC2 x2 Condenser Handheld Microphone are from the U500® Series vocal sets and were developed in Germany by LD Systems  professional technology and sound quality at an affordable pricepoint. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. And available in the B6 frequency bands:655 – 679 MHz, where 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy setup.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

LD System LDU506HHC2 x2 Condenser Handheld Microphone

LD System LDU506HHC2 x2 Condenser Handheld Microphone are from the U500® Series vocal sets and were developed in Germany by LD Systems  professional technology and sound quality at an affordable pricepoint. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. And available in the B6 frequency bands:655 – 679 MHz, where 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy setup.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

More Information
Additional Information

Product type Wireless Microphone Systems

Type: Handhelds
Transmission frequency range: 655 – 679 MHz
Weight: 5,435 kg

LDU506R2 – LD Systems U506 R 2 Dual receiver

Product type: Wireless Microphone System Accessories
Type: true diversity
Modulation Type: FM
Channels: 2 x 160
Groups: 2 x 10
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 60 – 16.000 Hz
Noise reduction: Squelch
Signal-to-noise ratio: > 105 dB
Controls: volume headphones
Audio output, balanced 2 x XLR
Indicators: 2 x multifunction LC display
Operating voltage: 13.5 V DC
Audio mix: output, balanced XLR
Audio mix: output, unbalanced 6.3 mm jack
Max. output level: symmetrical -8 dBu
Headphones: ouput 1
Headphones: outputs 6.3 mm TRS
Weight: 2,05 kg
Other features: IR frequency synchronisation
Width: 483 mm
Height: 45 mm
Depth: 190 mm
Accessories (included): Power supply

LDU506MC – LD Systems U506 MC Condenser handheld microphone

Type:  Microphones
Channels: 160
Groups: 10
Microphone type: condenser
Directivity: Cardioid
Signal-to-noise ratio: 8 dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: Power
Indicators multifunction: LC display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Length: 255 mm
Diameter:49 mm
Weight: 0,25 kg
Other features: incl. batteries

Audio Options Wireless
Event Size Up to 20
