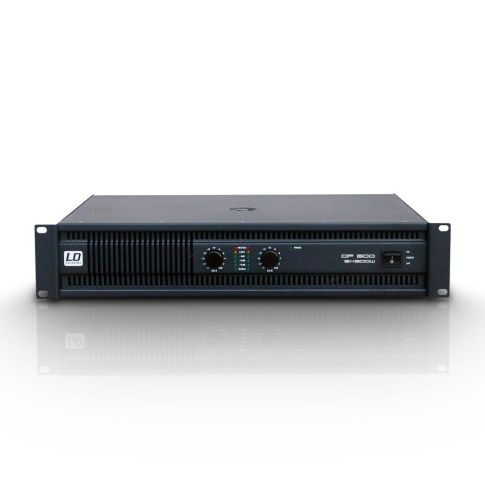

LD Systems DEEP2 600 – PA Power Amplifier (2 x 300W at 2 Ohms)
SKU
LDDP600
The LD Systems DEEP2 600 gives you a Class-H power amplifier with a toroidal core and amplifying levels of 2 x 300W at 2 Ohms. Boasting the most high end and selected components, the DEEP2 600 is extremely reliable.
LD Systems DEEP2 600
The LD Systems DEEP2 600 gives you a Class-H power amplifier with a toroidal core and amplifying levels of 2 x 300W at 2 Ohms. Boasting the most high end and selected components, the DEEP2 600 is extremely reliable. So you can be sure you’ll have a continuous operation. On top of that, the DEEP2 600 features a Clip Limiter as well as all the standard protection circuits.
Then, on the rear panel of the DEEP2 600, you’ll find all the common I/O. So you’ll enjoy a dynamic and clear sound that’s perfect for Subbass applications as well as multipurpose speakers.
What’s more, the DEEP2 600 is extremely lightweight and features a robust steel plate housing. Not to mention a user-friendly and compact design.
Above all, DEEP2 600 is a profitable and reliable choice for bands, renting companies, and professional users.
Rear Panel Connectivity
The DEEP2 600 offers 2 3-pin XLR/6.33mm TRS COMBI-type connector inputs for INPUT A and B. These are for connecting to a mixing console or another source. Also present are XLR-type connectors LINK A and B. These allow you to prepare for through connecting input signals to additional external power amps. The input signal is directly routed to these output connectors, even if power is switched off.
A Ground Lift switch is present which breaks a connection between the chassis earth and electrical earth. Use this feature only when a 50Hz hum is heard from your loudspeakers.
The DEEP2 600 offers both Speakon and Binding post-type loudspeaker connectors for output signals. The Speakon connector is useful with high-power speaker connections. It locks in place, prevents shock hazards, and assures the correct polarity.
Also available is a wide range of PA Speakers.
- PA Power Amplifier
| Additional Information | Product type: Power Amplifiers Type: PA Power Amplifiers Rated ouput power (1kHz @ 2 Ohms): 2 x 300 W Rated ouput power (1kHz @ 4 Ohms): 2 x 400 W Rated ouput power (1kHz @ 8 Ohms): 2 x 300 W Rated ouput power (1kHz @ 4 Ohms, bridged): 600 W Rated ouput power (1kHz @ 8 Ohms, bridged): 800 W Output circuitry: Class H Frequency response: 20 – 20000 Hz Total Harmonic Distortion (THD): < 0.1 % Signal-to-noise ratio: 105 dB Damping factor: > 400 Crosstalk: >80 dB Gain: 35 dB Input sensitivity: 0.75 V Protection circuits: clip limiter , DC protection , short circuit , thermal overload Controls: 2 x volume , bridge/stereo mode selector , ground lift , mains switch (on/off) Indicators: level , Limit , Power , Protect (protection circuit engaged) , Signal Loudspeaker outputs: 2 Speaker output connections: Speakon compatible , Terminal posts Cooling: highly efficient, automatic Operating voltage: transformer Operating voltage: 230 V AC / 50-60 Hz Weight: 12,8 kg Features: Volex mains socket |
|---|---|
