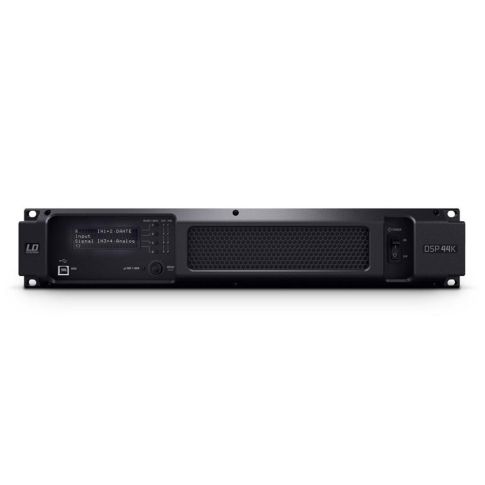

LD Systems DSP 44 K – 4-Channel DSP Amplifier with Dante
SKU
LDDSP44K
LD Systems DSP 44 K
The LD Systems DSP 44 K gives you a professional, network-ready 4-channel power amplifier. Offering the perfect solution for demanding large-scale sound reinforcement. Including extensive DSP control, as well as Audinate’s Dante networking technology; a self-configuring solution that allows you to distribute audio over Ethernet while enjoying extremely low latency. Thanks to its massive 1,200 Watts per channel and 2 x 2,400 watts bridged, the DSP 44 K is ideal for concert-quality performance.
Boasting high-efficiency Class H topology as well as a switch-mode power supply; the DSP 44 K also features power factor correction (PFC) that provides a wide dynamic range as well as an excellent transient response. It also features a range of comprehensive protection circuitry including power-up, DC, overcurrent, thermal and short circuit protection. Not to mention current and clip limiters to prevent SMPS overload and loudspeaker damage. Combined with temperature-controlled fans, the DSP 44 K ensures exceptional reliability.
The 24-bit DSP allows precise control with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiter functions. User-configurable loudspeaker presets with password protection enable fast setup. The LD Systems® DSP 44 K sports a menu-driven 4-line display and rotary encoder with push-button switch for easy configuration. The Dante™ interface permits instant integration into networks using the Dante™ protocol, and the included software enables computer control and monitoring.
The LD Systems® DSP 44 K is housed in a 2U all-steel chassis and weighs just 7 kg. It provides balanced Neutrik® XLR inputs, speakON® output connectors plus USB and Ethernet ports. For optimal speaker performance and safe operation, the DSP 44 K comes with an LD Systems® loudspeaker preset library.
LD Systems DSP 44 K
The LD Systems DSP 44 K gives you a professional, network-ready 4-channel power amplifier. Offering the perfect solution for demanding large-scale sound reinforcement. Including extensive DSP control, as well as Audinate’s Dante networking technology; a self-configuring solution that allows you to distribute audio over Ethernet while enjoying extremely low latency. Thanks to its massive 1,200 Watts per channel and 2 x 2,400 watts bridged, the DSP 44 K is ideal for concert-quality performance.
Boasting high-efficiency Class H topology as well as a switch-mode power supply; the DSP 44 K also features power factor correction (PFC) that provides a wide dynamic range as well as an excellent transient response. It also features a range of comprehensive protection circuitry including power-up, DC, overcurrent, thermal and short circuit protection. Not to mention current and clip limiters to prevent SMPS overload and loudspeaker damage. Combined with temperature-controlled fans, the DSP 44 K ensures exceptional reliability.
The 24-bit DSP allows precise control with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiter functions. User-configurable loudspeaker presets with password protection enable fast setup. The LD Systems® DSP 44 K sports a menu-driven 4-line display and rotary encoder with push-button switch for easy configuration. The Dante™ interface permits instant integration into networks using the Dante™ protocol, and the included software enables computer control and monitoring.
The LD Systems® DSP 44 K is housed in a 2U all-steel chassis and weighs just 7 kg. It provides balanced Neutrik® XLR inputs, speakON® output connectors plus USB and Ethernet ports. For optimal speaker performance and safe operation, the DSP 44 K comes with an LD Systems® loudspeaker preset library.
- Dante™ enabled 4-channel power amplifier with DSP control
- 4 x 1,200 watts @ 4 and 2 ohms, 2 x 2,400 watts bridged @ 4 ohms
- 10 Hz – 22 kHz frequency response with 120 dB dynamic range
- 24-bit/48kHz DSP with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiters
- DC, overcurrent, thermal and short circuit protection, soft start, clip and SMPS overload limiters
- Dual temperature-controlled fans
- Power factor correction (PFC)
- Menu driven 4-line display with rotary encoder and security lock
- Includes control and monitoring software and LD Systems® Loudspeaker Preset Library
| Additional Information | Product type: Power Amplifiers Type: 4-channel Rated ouput power (1kHz @ 2 Ohms): 4 x 1200 W Rated ouput power (1kHz @ 4 Ohms): 4 x 1200 W Rated ouput power (1kHz @ 8 Ohms): 4 x 675 W Rated ouput power (1kHz @ 4 Ohms, bridged): 2 x 2400 W Rated ouput power (1kHz @ 8 Ohms, bridged): 2 x 1200 W High Z 70Vrms / 100Vpeak: 4 x 1200 W High Z 100Vrms / 140Vpeak: 2 x 2400 W Output circuitry: Class H Frequency response: 10 – 22000 Hz Total Harmonic Distortion (THD): < 0.05 % @ 1 kHz Signal-to-noise ratio: 104 dB Protection circuits: clip limiter , DC protection , Multiband limiter , over-current , RMS speaker limiter , short circuit , soft start , thermal protection Controls: Direct access buttons , Exit / lock button , On / off switch , Rotary switch Indicators: LC display Line inputs: 4 Line input connectors: Neutrik XLR Line outputs: 4 Line output connectors: Neutrik XLR Loudspeaker outputs: 4 Speaker output connections: Speakon Cooling: 2 fans, temperature controlled Maximum Ambient Temperature: 0 – 40° °C Operating voltage: 220 V AC – 240 V AC, 50-60 Hz , Switching power supply Relative Humidity: < 80% (non-condensing) Power consumption @ full load: 1900 W Width: 482 mm Height: 89 mm Depth: 320 mm Weight: 1,808 kg Features: 19″ / 2 U , Active Power Factor Correction , Computer control software , Dante interface , DSP controlled , Ethernet , LD Systems loudspeaker preset library , USB front port |
|---|---|
| Audio Options | Wireless |
| Event Size | Up to 20 |
