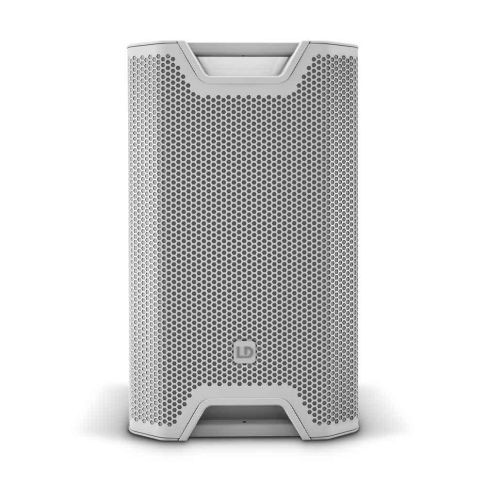

LD Systems ICOA 12AW – White 12″ Inch Active Coaxial PA Speaker
The LD Systems ICOA 12AW in White is a full-range PA loudspeaker. Delivering outstanding sound, even at low frequencies, the ICOA 12AW White offers unparalleled features for its class.
LD Systems ICOA 12AW White
The LD Systems ICOA 12AW in White is a full-range PA loudspeaker. Delivering outstanding sound, even at low frequencies, the ICOA 12AW White offers unparalleled features for its class. Featuring a coaxial design, rotating, BEM-Optimised CD Horn, and extensive and precisely calibrated Dynx DSP presets. As a result, the ICOA active 12″ loudspeaker is exceptionally flexible.
With outstanding bass reproduction from the horn-loaded woofer; the LD ICOA 12AW White is the ideal choice for musicians, bands, entertainers and schools. While also allowing DJs to play sets without the need for an additional subwoofer. Sit your speaker vertically, and it impresses as a satellite. While horizontally it’s perfect in suspended systems or as a floor monitor. Packing an efficient Class-D power amplifier, the ICOA 12AW delivers 126 dB max SPL as well as 300W RMS performance.
DynX DSP technology
Furthermore, drawing on the LD Systems DynX DSP technology; the ICOA 12AW White delivers perfect performance with maximum clarity and power. Plus the 4 presets, 3 band EQ and delay function also give you ultimate control over your sound. 2 Line/Mic input channels feature individual gain controllers, plus mono mix output. Allowing a variety of signal sources to be connected.
Boasting a shock-resistant front grille with an ideal 55-degree tit angle; the LD Systems ICOA 12AW is perfect as a floor monitor. As well as offering the choice of a slight tilt angle for optimally adapting the system to its acoustic environment. While the 4 aluminium handles with a rubber surface give you optimal grip for when you’re transporting your speaker.
The ICOA 12AW is a genuine all-rounder for full-range, satellite and monitor applications.
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 1200 W peak power
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
| Additional Information | Product type: PA loudspeaker Type: Powered Color: White (RAL 9003) Low/mid driver dimensions: 12 “ Woofer size: 304.8 mm Woofer magnet: Ferrite Woofer brand: Custom-made Horn BEM optimized: CD Horn HF driver dimensions: 1 “ HF Driver Size: 25.4 mm HF driver magnet: Ferrite HF driver brand: Custom-made HF driver voice coil: 1 “ HF Driver Voice Coil: 25.4 mm Amplifier:Class D Dispersion (H x V): 90 ° – 50 RMS: 300 W Peak power: 1200 W Frequency response: 50 – 20000 Hz Crossover frequency: kHz 2 kHz Max. SPL: (peak) 126 dB Protection circuits: Multiband limiter , over voltage , over-current , thermal overload Controls: 2 x gain , On / off switch , Rotary/push encoder Indicators: LC display Mic/ line inputs: 6.3 mm jack Combination sockets (symmetrical) , XLR Line inputs: 1 Line input connectors: 3.5 mm TRS Line outputs: 1 Line output connectors: 3.5 mm TRS Operating voltage: SMPS Power consumption: 150 W Ambient temperature: ( in operation ) 0 – 40 °C Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz Relative Humidity: < 80 %, not condensing Fuse: T4AL 250 V Cabinet material: Polypropylene Cabinet construction: Bass Reflex Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points Monitor angle: 55 ° Width; 375 mm Height: 635 mm Depth: 396 mm Weight: 19,95 kg Accessories (included): Power cord |
|---|---|
| Audio Options | Wireless |
| Event Size | Large events |
| Event Size | Up to 20 |
