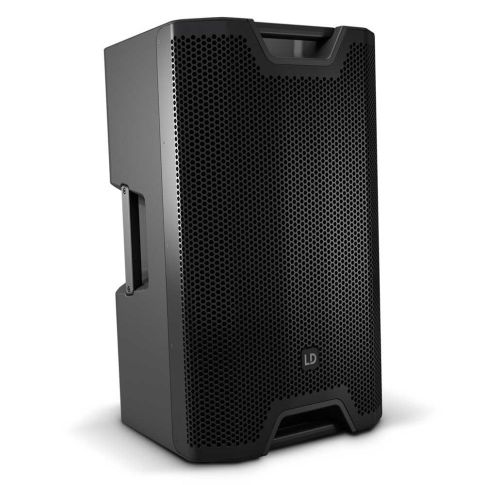

LD Systems ICOA 15 – Passive 15″ Inch Coaxial PA Loudspeaker Black

The LD Systems ICOA 15 Passive speaker in black is a full-range 15″ Inch loudspeaker. With a frequency response between 48Hz and 20kHz, the ICOA 15 will surely impress you with its sound quality.


The LD Systems ICOA 15 Passive speaker in black is a full-range 15″ Inch loudspeaker. With a frequency response between 48Hz and 20kHz, the ICOA 15 will surely impress you with its sound quality.

LD Systems ICOA 15 Passive Coaxial Speaker

The LD Systems ICOA 15 Passive speaker in black is a full-range 15″ Inch loudspeaker. With a frequency response between 48Hz and 20kHz, the ICOA 15 will surely impress you with its sound quality. Especially at low-end frequencies with its 1000W peak performance that delivers a maximum sound pressure of 125db. And because of the low-end performance, DJ’s can use the ICOA 15 without the aid of a dedicated subwoofer.

Sound quality

Considered as a jack-of-all-trades; the ICOA 15 speaker uses a coaxial design and BEM-optimised CD horn which means it’s very flexible. The horn-loaded woofer has an outstanding bass reproduction which makes it ideal for DJ’s, dance schools, musicians, bands and entertainers.

ICOA 15 – Versatile responses

Positioning the ICOA 15 in different configurations provides you with a few choices. When deployed vertically, it provides you with a pleasing satellite speaker. The 36 mm dual tilt stand attachment, offers the choice of tilting the ICOA 15 between a 0° or 5° tilt angle. This optimally adapts the system to the local acoustic environment.

You can also use the ICOA 15 in a horizontal position. This way it can be used as a floor monitor. Because the ICOA 15 has an ideal tilt angle of 55°, it makes it an outstanding floor monitor when performing on stage. You can even use the ICOA 15 as a suspended speaker and achieve excellent results.


The very well proportioned, not to mention comfortable 4x handle design makes carrying this loudspeaker very easy. 2x handles are on either side and an additional 2x handles on the front. All the handles are made from aluminium with the addition of ergonomic rubber surfaces. This essentially provides you with a much better grip when handling the ICOA 15.

You can also mount the ICOA 15 to a tripod by using the integrated duel stand attachment. All made from metal to provide much more durability

Finally, with all this performance and versatility, it really makes the ICOA 15 a perfect choice for music and vocal applications in both clubs and outdoor public areas.



Also available is the ICOA 15A (Active 15“ Inch Powered Coaxial PA Loudspeaker Black) & ICOA 15A BT (Active 15“ Inch Powered Coaxial PA Loudspeaker with Bluetooth Black).

  • A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
  • Passive loudspeaker with 125 dB max. SPL and 1000 W peak power
  • Vertical and horizontal use thanks to a coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with a sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal speaker protection
  • Four aluminium grips with ergonomic, rubber surface
  • Extensive range of optionally available accessories for installation and transport

More Information
Additional Information

Product type: PA loudspeaker

Type: Passive

Colour: Black

Low/mid driver dimensions: 35 “

Woofer size: 381 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Horn: BEM optimized CD Horn

HF driver dimensions: 1 “

HF driver size: 25.4 mm

HF driver magnet: Ferrite

HF driver brand: Custom-made

HF driver voice coil: 1.4 “

HF driver voice coil: 35 mm

Dispersion (H x V): 90° x 50°

Load Rating (RMS): 250 W

Peak power: 1000 W

Frequency response: 48 – 20000 Hz

Crossover frequency: 2000 Hz

SPL (1W/1m): 95 dB

Max. SPL: 125 dB

Impedance: 8 Ohm(s)

Loudspeaker inputs: 1

Speaker input connections: Speakon compatible

Loudspeaker outputs: 1

Speaker output connections: Speakon compatible

Cabinet material: Polypropylene

Cabinet construction: Bass Reflex

Mounting: 36mm flange (0°, 5°), 6 x M10 flying points

Monitor angle: 55 °

Width: 416 mm

Height: 695 mm

Depth: 415 mm

Weight: 24,7 kg

Audio Options Wireless
Event Size Up to 20
