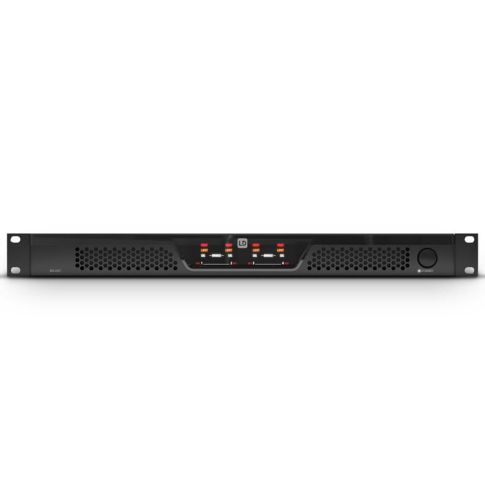

LD Systems IPA412T 4-Channel Hybrid DSP Amplifier 4x 120W
SKU
LDIPA412T
The LD Systems IPA412T 4-Channel Hybrid DSP Amplifier 4x 120W is a professional amplifier. Four channels operate at 4x 120 Watts. The outputs on the IPA412T are high-quality toroidal core transformers and operate at 70V/100V.
LD Systems IPA412T DSP Amplifier
The LD Systems IPA412T 4-Channel Hybrid DSP Amplifier 4x 120W is a professional amplifier.
Four channels that operate at 4x 120 Watts. The outputs on the IPA412T are high-quality toroidal core transformers and operate at 70V/100V. Therefore These transformers are perfect for use with the LD Systems DQOR 3T, DQOR 5T, DQOR 8T speakers. While the low impedance 4-Ohm outputs with the transformer-less operation will guarantee you the highest possible audio quality.
The IPA412T comes packed with versatile functions; including a parametric EQ with a matching speaker library, dynamic tools, a matrix mixer, priority source selection, and delay. Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection, and bridge mode are easily visible via the LEDs on the front panel.
On the back of the IPA412T, you will find a few future-proofing connections. For example, the Ethernet card offers comprehensive configurations and management via software. As the Dante card offers audio networking capabilities to a wide range of Dante-enabled devices. As a result, you can integrate the IPA 412 T into the Dante network in order to resolve more complex tasks.
Scalability and future-proofing are the biggest advantages of the IPA Series. Its energy efficiency is also ideal thanks to the Class-D technology and switchable auto standby.
- Professional 4-channel installation amplifier
- Powerful Class-D power amplifier with 4 x 120 W
- Switchable 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 balanced line inputs and 4 speaker outputs with terminal block connections
- User-friendly front panel with signal, limit, protection, mute, and bridge mode LEDs per channel and clipping LEDs for the inputs
- DSP presets with HPF and LPF which can be activated via DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
| Additional Information | Dimensions: 483 x 44.5 x 425 mm Weight: 8.7kg Product type: Installation power amplifier Amplifier Type: Class-D Rated Output: 4 Ohms: 4 x 120 W (1.5 seconds sine burst), 8 Ohms: 4 x 60 W (1,5 Seconds Sine Burst), 16 Ohms: 4 x 30 W (1.5 Seconds Sine Burst), 8 Ohms (bridged): 2 x 235W (1.5 Seconds Sine Burst) Audio Channels: 4 Output Circuitry: Class D Operating voltage: Wide Range SMPS with PFC (power factor control) Mains connector: IEC socket Auto-Standby Power: Yes. Switchable (On-Off) Time to Auto-standby: 20 Min with no audio input signal DSP: Yes Remote-Bus: Yes Indicators: Front Panel: “PROT”, “LIMIT”, “SIG”, “BRIDGE” and Mute Symbol LED´s. Power On/ Standby LED , Rear Panel: 4x Input Clip LED´s, Remote Lock LED (Red) Controls Front panel: On / off switch , standby Controls Element Back Panel: “BRG“ (Bridge) , “PAR“ (Parallel) , “ST“ (Stereo) , Amplifier Channel Mode , Low-Z and High-Z switches (paired) , Output Volume potentiometers , Preset A and B switches , Remote Lock , Remote ON/OFF , Remote-Mode , Standby On/Off Inputs: 4x Balanced Line Inputs , Remote Bus Audio Input Input connectors: 6-pin Terminal Block Pitch 3.81mm , Remote IN/OUT RJ45 , Service Micro USB Type-B Expansion Slot: For optional Ethernet, or Ethernet + Dante cards Cooling: front to rear/side airflow , Passive + 2-zone temperature controlled active cooling Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz Fuse: T10AL 250 V Inrush Current Power: 2.8 A Power Consumption: Standby: 0.9W, Idle mode: 25W, Full Load: 790W Operating temperature: 0 °C – 40 °C; (max 60% relative humidity)
|
|---|---|
