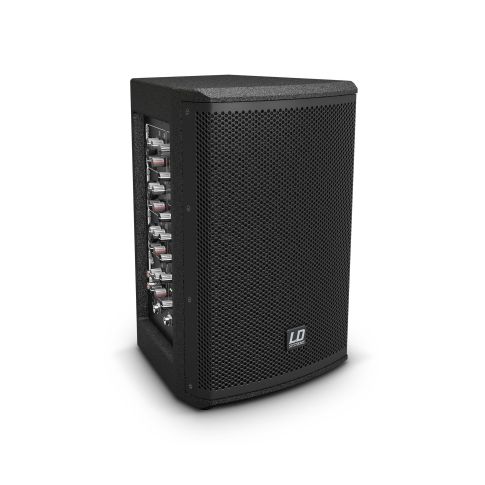

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer

Be the first to review this product
SKU
LDMIX62AG3

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer is the little brother to the LDMIX102AG3 2 Way Speaker with 7 Channel Mixer and is an ideal choice for small-scale PA and personal monitoring applications. The active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power,  the compact bass reflex loudspeaker features a 6.5″ custom woofer and 1″ HF driver complement. The 80 Hz to 20 kHz frequency response and 80° x 70° dispersion range delivers crystal clear sound with punch and detail.

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

$629.00

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer is the little brother to the LDMIX102AG3 2 Way Speaker with 7 Channel Mixer and is an ideal choice for small-scale PA and personal monitoring applications. The active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power,  the compact bass reflex loudspeaker features a 6.5″ custom woofer and 1″ HF driver complement. The 80 Hz to 20 kHz frequency response and 80° x 70° dispersion range delivers crystal clear sound with punch and detail.

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer

LD Systems LDMIX62AG3 2 Way Speaker with 4 Channel Mixer is the little brother to the LDMIX102AG3 2 Way Speaker with 7 Channel Mixer and is an ideal choice for small-scale PA and personal monitoring applications. The active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power,  the compact bass reflex loudspeaker features a 6.5″ custom woofer and 1″ HF driver complement. The 80 Hz to 20 kHz frequency response and 80° x 70° dispersion range delivers crystal clear sound with punch and detail.

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

  • Class D amplification with 2 x 280 watts peak power
  • 6.5” custom woofer and 1” HF driver
  • Integrated 4-channel mixer
  • 24-bit DSP with 16 FX Presets
  • Slave output for combination with LD MIX 6 G3 passive loudspeaker
  • Bass reflex enclosure for powerful, punchy bass
  • Dual 16 mm pole mounts for horizontal or vertical orientation

More Information
Additional Information

Product type: PA loudspeaker

  • Type: Active
  • Woofer dimensions: 6.5 “
  • Woofer size: 165.1 mm
  • Woofer brand: Custom-made
  • Tweeter dimensions: 1 “
  • Tweeter dimensions (mm): 25.4 mm
  • Tweeter brand Custom-made
  • Dispersion (H x V): 80 x 70 °
  • Frequency response: 80 – 20.000 Hz
  • Amplifier Class: D
  • Amplifier output (RMS): 2×70 W
  • Amplifier output (peak): 2×280 W
  • Max. SPL: 122 dB
  • Protection circuits ICL (Intelligent Clip Limiting):
    • over-current
    • overload
    • short circuit
    • thermal overload

Mixer

  • Channels: 4
  • Mic inputs: 3
  • Mic inputs: 6.3 mm jack , XLR
  • Controls for Mic Inputs: DFX Send , EQ Hi , EQ Low , Hi-Z Switch (channel 1 only) , level
  • Input Impedance Mic Inputs: 14 kOhm
  • Input Sensitivity Mic Input: 70 mV
  • Line inputs: 1
  • Line input connectors: 2 x RCA
  • Controls Line Inputs:
    • DFX Send
    • EQ Hi
    • EQ Low
    • Level
  • Input Impedance Line Inputs: 4.4 kOhm
  • Input Sensitivity Line Inputs: – 5 dBu
  • Hi-Z inputs: 1
  • Hi-Z input connectors: 6.3 mm jack
  • Input Impedance Hi-Z Input Connectors: 100 kOhm
  • Monitor Line Outputs: 1
  • Connector Type Monitor Line Output: 2 x RCA
  • Controls for Monitor Line Output: Monitor Volume
  • Max Output Level Line: Output Monitor: 28 dBu
  • Record Outputs: 1
  • Connector Type Record Output: 2 x RCA
  • Increased power main output (at 4 ohm): 70 W

DSP Digital Effects Unit

  • DSP Number of Programs 16
  • DSP Controls DFX:
    • Return
    • Mute switch
  • DSP Display Elements Peak LED

Main Section

  • Main section controls:
    • EQ Hi
    • EQ Low
    • EQ Mid
    • Master Volume
    • Phantom Power
    • Voltage selector switch
  • Main section indicators:
    • 4-segment Level Meter
    • Power LED
  • Phantom power: 15 V
  • Mains connector: IEC socket
  • Operating voltage: transformer
  • Operating voltage: 110 – 120 V ~ 50/60 Hz or 220 – 240 V ~ 50/60 Hz, switchable
  • Power consumption: 180 W

Cabinet

  • Cabinet construction: vented
  • Cabinet material: MDF
  • Cabinet surface: texture paint
  • Cabinet Colour: Black
  • Width: 214 mm
  • Height: 323 mm
  • Depth: 221 mm
  • Weight: 7 kg

Other features

  • 2 x 16 mm pole mount socket
  • Rubber feet
Audio Options Wireless
Event Size Up to 20
