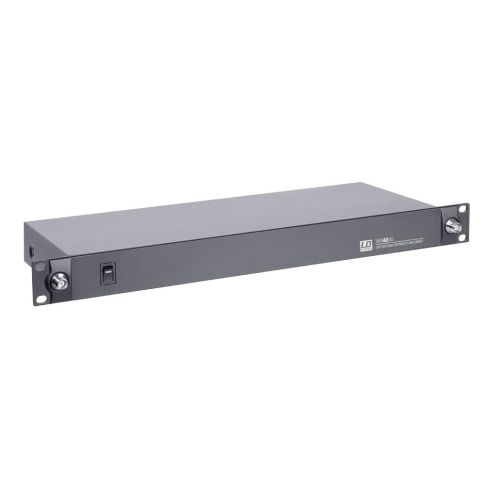

LD Systems LDWIN42AD Antenna Split Box 4 Way

Be the first to review this product
SKU
LDWIN42AD

LD Systems LDWIN42AD Antenna Split Box 4 Way

LD Systems LDWIN42AD Antenna Split Box 4 Way is engineered be LD Systems to work with all types of wireless microphone systems. Within a working in a range between 500.000 and 900.000 MHz.

$499.00

LD Systems LDWIN42AD Antenna Split Box 4 Way

LD Systems LDWIN42AD Antenna Split Box 4 Way is engineered be LD Systems to work with all types of wireless microphone systems. Within a working in a range between 500.000 and 900.000 MHz.

LD Systems LDWIN42AD Antenna Split Box 4 Way

LD Systems LDWIN42AD Antenna Split Box 4 Way is engineered be LD Systems to work with all types of wireless microphone systems. Within a working in a range between 500.000 and 900.000 MHz.

  • Active antenna splitter for wireless microphone systems
  • 500MHz to 900MHz ranges
  • 19″ rack-mountable design with front mounting antenna
  • Supplied power for your compatible wireless receivers
  • Supports up to 4 wireless microphones systems

More Information
Additional Information

Product type: Wireless Microphone System Accessories
Type: Antenna Splitter
Frequency band: 500 – 900 MHz
Frequency bandwidth: 400 MHz
Signal gain: 3 dB
Antenna inputs: 2
Antenna input connection: TNC
Input impedance: 50 Ohm(s)
Power supply for antenna booster: 9 V
Antenna outputs: 4 x 2
Antenna output connection: TNC
Output impedance: 50 Ohm(s)
Power supply for radio receiver: 4 x 12 – 18 V DC V
Operating voltage: 12 – 18 V DC, 3A
Operating voltage: 12 V DC – 18 V DC (100 mA)
Width: 482 mm
Height: 44.4 mm
Depth: 160 mm
Weight: 4,8 kg
Accessories (included): 10 x TNC cable, 0.5m , 2 x antenna , 2 x TNC adapter , 4 x DC cable, 0.5m , 4 x Output 600 mA , Plastic case , Power supply
Audio Options Wireless
Event Size Up to 20
