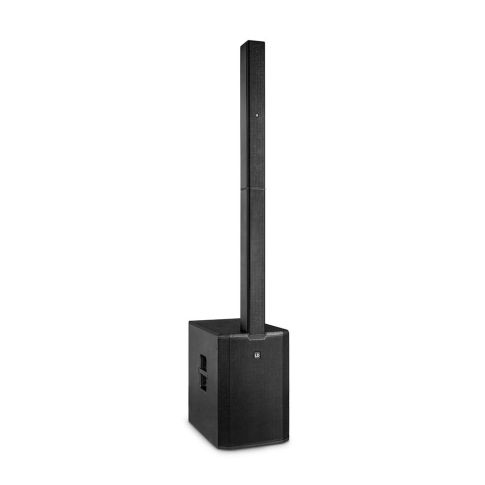

LD Systems MAUI 44G2 – Cardioid Powered Column Loudspeaker with Subwoofer

The LD Systems MAUI 44G2 offers a practical, powerful, column PA system solution for professional bands and DJs. The flagship of the MAUI series, MAUI 44G2 boasts an enormous 1500 watts of total output power (RMS).

$4,999.00

The LD Systems MAUI 44G2 offers a practical, powerful, column PA system solution for professional bands and DJs. The flagship of the MAUI series, MAUI 44G2 boasts an enormous 1500 watts of total output power (RMS).

LD Systems MAUI 44G2 – Cardioid Powered Column Loudspeaker with Subwoofer

The LD Systems MAUI 44G2 offers a practical, powerful, column PA system solution for professional bands and DJs.

The flagship of the MAUI series, MAUI 44G2 boasts an enormous 1500 watts of total output power (RMS). As well as a frequency response of 37Hz to 20kHz, and a sound pressure level (SPL) of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, the MAUI 44G2 is perfect for rental companies, musicians, small clubs, festivals, and permanent installations. Add in the cardioid properties and the possibility of creating a cardioid bass with an additional subwoofer, and you only further highlight the professional nature of MAUI 44G2.

What’s more, the two-part column includes twelve 3.5″ neodymium full-range speakers; as well as four 1″ HF drivers with a waveguide. Phase plugs featured on the six upper drivers improve horizontal directivity, reduce distortion, and optimize sensitivity below the crossover frequency for the tweeters. Additionally, the four tweeters feature specially designed and optimized compression drivers. Providing 120 degrees of coverage across the width, and 25 degrees of focused vertical directivity. While the curved design of the waveguide transports more energy in the high frequencies for listeners that are further away

Packed with features

The MAUI 44G2 is Truly Wireless, therefore, making it so much easier when using it as a permanent fixture. Enabling two systems to be wirelessly connected for stereo reproduction. On top of that, HD Bluetooth streaming is no problem at all thanks to aptX and AAC codec. While the DynX DSP technology ensures distortion-free sound reproduction, even at the highest volumes. So whatever the situation, you’ll get a perfectly balanced sound, crystal-clear treble, crisp mid-range, and powerful bass!

Another great feature of the MAUI 44G2 is its automatic setup recognition. So if you remove the column to use the subwoofer as a slave; MAUI 44G2’s display will automatically jump to SLAVE. Then, functions such as Bluetooth and controls for the MAIN and SUB will no longer appear.

Assembly is quick and easy

When it comes to transportation and mobile use, the MAUI 44G2 is absolutely top class. Assembly is quick and easy, and there’s no need for annoying cables or stands – special multi-pin connections are used instead. While the entire column and subwoofer weigh a total of less than 48kg. That’s 20% less than the original MAUI 44 to be exact! There’s also an optionally available transport roller board, carry bag and subwoofer cover that offers excellent protection for day-to-day use.

In terms of ins and outs, the MAUI 44G2 offers 2 XLR ins, while 2 XLR outputs enable a wired stereo configuration of two systems. There’s also an additional SUB OUT so you can hook up an additional subwoofer. While the power supply is via a secure and reliable powerCon connection.



Also available is the Subwoofer Bag and Satellite Bag.

  • Professional column PA system with 1500 W RMS and 132 dB max. SPL
  • Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
  • TrueWireless™ stereo technology for wireless stereo pairing of two column systems
  • aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
  • BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
  • DynX® DSP technology for distortion-free sound at maximum volume
  • Automatic setup detection
  • Fast and simple assembly without stands or cables
  • Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column

More Information
Additional Information

Product type: PA Complete Systems

Type: Powered

Colour: Black

Max. SPL (peak): 132 dB

Frequency response: 37 – 20000 Hz

Dispersion (H x V): 120 x 25 °

Total Height: 2256 mm

Weight: 47,6 kg

Features: Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application



Subwoofer:

Woofer dimensions: 15 “

Woofer size: 381 mm

Woofer magnet: Neodymium

Woofer brand: Custom-made

Woofer voice coil: 4 “

Woofer voice coil (mm): 101 mm

Cabinet construction: Bass Reflex

Housing material: 15 mm Birch Plywood, 18 mm Birch Plywood

Cabinet surface: Polyurea

Dimensions Subwoofer (W x H x D): 434 x 634 x 637 mm

Subwoofer weight: 36.4 kg



Mid/Hi System:

Midrange size: 12 x 3,5 “

Midrange size: 12 x 89 mm

Midrange magnet: Neodymium

Midrange brand: Custom-made

Midrange voice coil: 1 “

Midrange voice coil: 25.4 mm

Tweeter dimensions: 4 x 0.5 “

Tweeter dimensions (mm): 12.7 mm

Tweeter magnet: Neodymium

Tweeter brand: Custom-made

Tweeter voice coil: 1 “

Tweeter voice coil (mm): 25.4 mm

Wave Guide: CD Waveguide

Loudspeaker inputs: 1

Speaker input connections: Custom-made multipin

Cabinet construction mid/high: Closed

Mid/Hi system cabinet material: Aluminium

Mid/Hi system cabinet surface: HD coated aluminium, multi-layer mesh (cloth)

Mid/Hi system width: 103 mm

Mid/Hi system height: 1621 mm

Mid/Hi system depth: 135 mm

Mid/Hi System weight: 11.2 kg



Amplifier module (integrated into subwoofer):

Amplifier: Class D

System output (RMS): 1500 W

Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection

Cooling: Convection

Controls: Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

Indicators: Bluetooth, Bluetooth STEREO LINK, Cardioid On/Off, Limit, Power, Protect (protection circuit engaged), Signal, slave mode, Subwoofer Mode

Mains connector: Neutrik PowerCon

Operating voltage: 100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 Hz

Ambient temperature (operating): 0 – 40 °C

Relative Humidity: < 80% (non-condensing)

Line Inputs: 2

Line Input Connectors: XLR female

Line Outputs: 2

Line Output Connectors: XLR male

Number of speaker outputs: 1

Loudspeaker Output Connectors: Custom-made multipin

Bluetooth Standard: A2DP

Bluetooth Audio Decoder: AAC, aptX, SBC



DSP characteristics:

Bit depth AD/DA converter: 24 bit

Sampling frequency: 48 kHz

Signal-to-noise ratio: 106 dB

Audio Options Wireless
Event Size Up to 20
