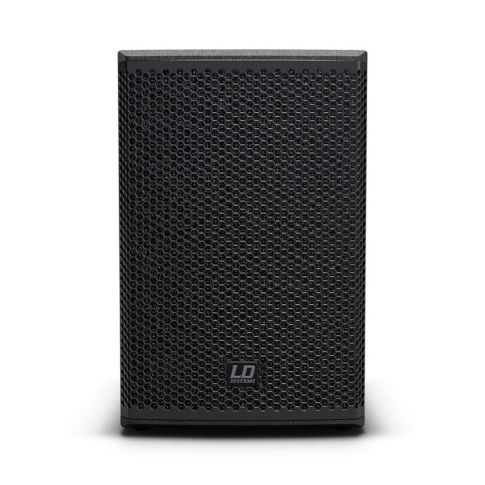

LD Systems MIX102 G3 Passive Speaker
SKU
LDMIX102G3
LD Systems MIX102 G3
LD Systems MIX102 G3 Passive Speaker is a passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3. The MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power and makes this the optimal choice for small-scale PA and personal monitoring applications, accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players. Making this PA setup an ideal choice
The built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel and the compact bass reflex loudspeaker features a 10″ custom woofer and 1″ Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.
The output’s on the LDMIX102G3 provide a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit, and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.
The rigid enclosure is constructed with tough plywood with a slick & road-proof metal grill the Compact 2-way cabinet provides extremely brilliant and clear sound quality. Featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
LD Systems MIX102 G3
LD Systems MIX102 G3 Passive Speaker is a passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3. The MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power and makes this the optimal choice for small-scale PA and personal monitoring applications, accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players. Making this PA setup an ideal choice
The built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel and the compact bass reflex loudspeaker features a 10″ custom woofer and 1″ Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.
The output’s on the LDMIX102G3 provide a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit, and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.
The rigid enclosure is constructed with tough plywood with a slick & road-proof metal grill the Compact 2-way cabinet provides extremely brilliant and clear sound quality. Featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
- Passive 2-way loudspeaker
- Ideal as a slave to MIX 10 A G3
- 10” custom woofer and 1” Celestion HF driver
- 200 watts RMS power handling
- 121 dB maximum SPL
- Rugged birch ply cabinet
- Shock-resistant front grill provides maximum speaker protection
- 36 mm dual-tilt pole receptacle for 0° or 5° orientation
| Additional Information | Product type: PA loudspeaker Type: passive Low/mid driver dimensions: 10 ” Woofer size: 254 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer voice: coil 2 ” Woofer voice coil (mm): 50.8 mm Horn: CD horn HF driver dimensions: 1 ” HF Driver Size: 25.4 mm HF driver: magnet Ferrite HF driver brand: Celestion HF driver: voice coil 1 ” HF Driver: Voice Coil 25.4 mm Dispersion (H x V): 80 x 70 ° Load rating (RMS): 200 W Peak power: 400 W Frequency response: 65 – 20.000 Hz SPL: (1W/1m) 95 dB Max. SPL: 121 dB Impedance: 4 Ohm(s) Protection circuits: HF Driver Loudspeaker: inputs 1 Speaker input connections: Speakon compatible Cabinet material: 16 mm Plywood Cabinet surface: PA painting Cabinet construction: vented Monitor angle: 50 ° Width: 315 mm Height: 489 mm Depth: 307 mm Features: dual-tilt flange (0°/5°) , Ergonomic handle Weight: 10,8 kg |
|---|---|
| Audio Options | Wireless |
| Event Size | Up to 20 |
