LD Systems MON121AG2 – 12″ Active Stage Monitor

The LD Systems Stinger MON121AG2 brings you a compact active stage monitor suited for mobile applications. Sporting a 12″ coaxial speaker with an integral 1″ HF driver with powerful ferrite magnets

$869.00

The LD Systems Stinger MON121AG2 brings you a compact active stage monitor suited for mobile applications. Sporting a 12″ coaxial speaker with an integral 1″ HF driver with powerful ferrite magnets

No Longer Available: This product is no longer available for hire or purchase. Please contact us for alternative options or similar products.

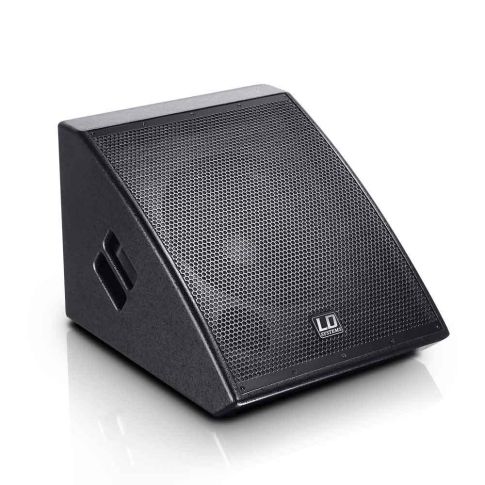

LD Systems MON121AG2

12″ Active Stage Monitor

The LD Systems Stinger MON121AG2 brings you a compact active stage monitor suited for mobile applications. Sporting a 12″ coaxial speaker with an integral 1″ HF driver with powerful ferrite magnets. As a result, the MON121AG2 stands out because of a precisely symmetrical dispersion over 75 x 75 degrees. It also attains a maximum SPL of 124dB with maximum resistance to feedback.

On top of that, the MON121AG2 is driven by a Class AB power amplifier with a power output of 1000W Peak and a frequency response curve of 80Hz – 20kHz.

Additionally, the MON121AG2 features a built-in limiter that prevents overloading of the speaker. As well as a protection circuit that works to prevent short-circuiting. You’ll find an XLR-jack combo socket as well as an XLR output that permits looping through the signal.

There’s also another connector panel that includes volume control, IEC power socket, LED indicators for power, signal, and limiter function.

Finally, the MON121AG2 features an elegant looking bass-reflex enclosure made of 15mm-thick multiplex finished with a durable coating. While the sturdy metal grille guards against speaker damage and the ergonomic handles make transport easier. With a 35-degree monitor angle that looks great and doesn’t get in the way!

  • PA Loudspeaker
  • 12″ Coaxial Speaker
  • Frequency response curve of 80Hz – 20kHz
  • Built-in limiter prevents overloading
  • Prevents short-circuiting

More Information
Additional Information

Product type: PA loudspeaker

Type: Powered

Low/mid driver dimensions: 12 “

Woofer size 304 mm

Woofer type coaxial loudspeaker

Woofer magnet Ferrite

Woofer brand Custom-made

Woofer voice coil 2 “

Woofer voice coil (mm) 50.8 mm

HF driver dimensions 1 “

HF Driver Size 25.4 mm

HF driver magnet Ferrite

HF driver brand Custom-made

HF driver voice coil 1 “

HF Driver Voice Coil 25.4 mm

Amplifier Class A/B

Dispersion (H x V) 75 x 75 °

RMS 250 W

Peak power 1000 W

Frequency response 80 – 20000 Hz

Crossover frequency 2200 Hz

SPL (1W/1m) 100 dB

Max. SPL (continuous) 116 dB

Max. SPL (peak) 124 dB

Protection circuits limiter , short circuit

Controls On / Off , volume

Indicators Limit , Power , Signal

Line Inputs 1

Line input connectors 6.3 mm jack , XLR

Line Outputs 1

Line output connectors XLR

Operating voltage 230 V AC / 50-60 Hz

Cabinet material 15 mm Plywood

Cabinet construction Bass Reflex

Monitor angle 35 °

Width 440 mm

Depth 360 mm

Height 514 mm

Weight 17,8 kg

Features ergonomically shaped insert handles

Audio Options Wireless
Event Size Large events
Event Size Up to 20
