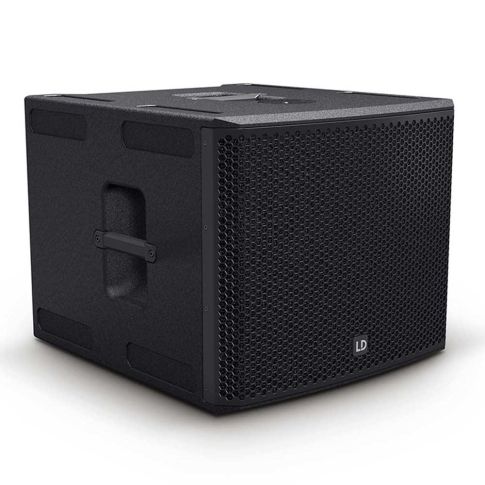

LD Systems Stinger Sub 15AG3 – Active 15″ Inch Bass Reflex PA Subwoofer
SKU
LDESUB15AG3
The LD Systems Stinger Sub 15AG3 is an Active 15” Inch bass-reflex PA subwoofer. It drives a custom-designed 15” woofer delivering a huge bottom end with a terrific punch and excellent definition.
LD Systems Stinger Sub 15AG3
The LD Systems Stinger Sub 15AG3 is an Active 15” Inch bass-reflex PA subwoofer. It drives a custom-designed 15” woofer delivering a huge bottom end with a terrific punch and excellent definition. With rock-solid reliability for day-in, day-out use it offers a high-efficiency 450 watts RMS digital power stage and 133 dB maximum SPL.
Furthermore, the Stinger Sub 15AG3 has built-in presets for quick system integration. It also offers a variety of cardioid array configurations and is completely user-friendly. The Stinger® SUB 15AG3 incorporates LD Systems’ proprietary DynX® DSP technology. This ensures top-level performance and pristine, distortion-free bass reproduction at all times.
Well-braced bass reflex enclosure
The Stinger Sub 15AG3 is a real workhorse throughout. You can use it in both horizontal and vertical orientation. As a result, you can use multiple subwoofers and stack them together. In order to offer the user extraordinary strength and durability; the Stinger Sub 15AG3 is made from a rigid 18 mm birch ply and coated with ultra-tough polyurea. It further sports a steel front grille, M20 threaded pole insert, stacking recesses and ergonomic handles for easy transportation. The Stinger Sub 15AG3 will truly deliver professional sound reinforcement and additional accessories to facilitate live and installed applications.
Rear Panel
On the rear panel of the Stinger Sub 15AG3, you will find 2x balanced line inputs that use an XLR / 6.3 mm jack combo. These are line inputs for both the left and right channels. When using both inputs; the signal will be summed as Mono. The use of unbalanced cables (e.g. mono jack) is also possible, however, balanced cables are preferable due to the greater noise immunity. 2x balanced THRU line inputs are also present. These also use 3-pin male XLR sockets. Aside from the rotary encoder for the total volume you also have several mode switches available. These modes offer 80 Hertz, 100 Hertz, 120 Hertz and Cardioid. Lastly, there is a Power IN, Power OUT and Power Master Switch on the rear of the subwoofer.
Also available is the LD Systems Stinger Sub 18AG3 (18″ Powered Subwoofer).
- Active 15” bass reflex PA subwoofer
- High-efficiency 450 watts RMS digital power stage and 133 dB max. SPL
- 15” custom design woofer for extended low end down to 40 Hz
- DynX® DSP technology for distortion-free performance
- 80, 100 and 120 Hz low pass presets
- Cardioid subwoofer array presets
- Horizontal or vertical placement
- 18 mm birch ply cabinet with ultra rugged polyurea finish
- Ergonomic handles and stacking recesses for easy transport and setup
- The shock-resistant front grill provides maximum speaker protection
- Insert for M20 threaded poles
- Smart transport accessories
| Additional Information | Product number: LDESUB15AG3 Product type: PA subwoofer Type: active Low/mid driver: 15″ (381mm) Woofer voice coil: 3″ Amplifier: Class D Inputs: 2x XLR / Jack combo Outputs: 2x XLR RMS: 450W Peak power: 900W Frequency response: 40Hz to 200Hz Max. SPL: 133dB (peak) Protection circuits: limiter, over voltage, short circuit, DC Input sensitivity: 0.3V Indicators: protect (protection circuit engaged), mode, limit, on, signal Operating voltage: 240V / 50Hz Operating Temperature: 0 – 40°C Relative humidity: < 80% (non-condensing) Cabinet material: 18 mm Plywood Dimensions: 567 x 477 x 624mm Weight: 32.4 kg |
|---|---|
