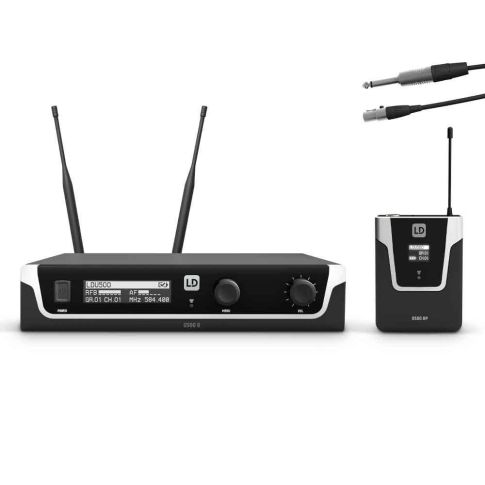

LD Systems U505 BPG – Wireless Microphone System with Bodypack and Guitar Cable – 584 – 608 MHz

The LD Systems U505 BPG Wireless System gives you the perfect solution whether you play guitar, bass, or wind instrument.


The LD Systems U505 BPG Wireless System gives you the perfect solution whether you play guitar, bass, or wind instrument.

LD Systems U505 BPG  584 – 608 MHz

The LD Systems U505 BPG Wireless System gives you the perfect solution whether you play guitar, bass, or wind instrument. Delivering impressive performance and extreme reliability, the U505 BPG will certainly exceed your expectations covering the 584-608 MHz frequency band. Offering selectable transmit power up to 30 mW, the U505 BPG provides a range of over 100 meters and is capable of running 12 systems simultaneously.

The bodypacks gain control allows attenuation of up to 27 dB which will suit both active and passive guitars; as well as bass and wind instruments. So you’ll always have a distortion-free audio signal. The U505 BPG is even capable of transmitting the lowest bass note thanks to the 30Hz frequency response. On top of that, output impedance and levels are switchable on the receiver to facilitate direct connection to both guitar and bass amplifiers.

What’s more, the U505 BPH wireless system features an automatic scan feature. Easily finding the best free frequency, while the one-touch infrared synchronisation ensures easy setup. You’ll also find high-contrast OLED displays that provide an excellent overview of functions with indicators for group, channel, radio frequency, signal strength, and battery status. You can even select individual usernames.

Not only does the U505 BPH feature the squelch function, but the Bodypacks silent pilot tone ensures fail-safe operation. Protecting against interference and muting the receiver shall clashing tones be present.

Above all, the U505 BPG wireless system is made from efficient and high-quality technology to provide distortion-free transmission without latency. It will also run for up to 10 hours with 2 AA batteries.


  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)Rugged enclosures
  • High-contrast OLED display

More Information
Additional Information

Product type: Wireless Microphone Systems

Type: Set

Transmission frequency range: 584 – 608 MHz

Weight: 2,46 kg

Audio Options Wireless
Event Size Up to 20
