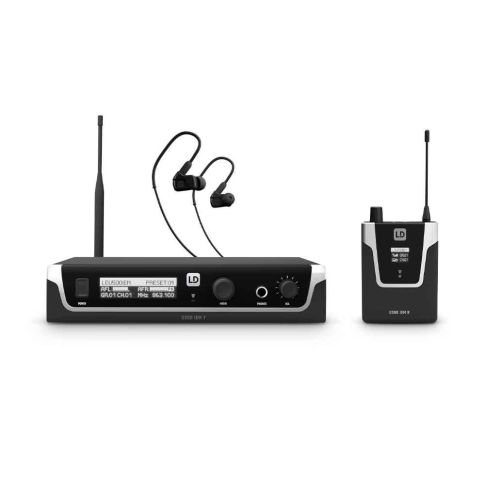

LD Systems U506 IEM HP In-Ear Monitoring System w/ Earphones

The U506 IEM HP In-Ear Monitoring System with Earphones gives you the perfect solution for moving freely on-stage while ensuring the perfect monitor mix is delivered straight to your ears


The U506 IEM HP In-Ear Monitoring System with Earphones gives you the perfect solution for moving freely on-stage while ensuring the perfect monitor mix is delivered straight to your ears

LD Systems U506 IEM HP

The LD Systems U506 IEM HP In-Ear Monitoring System with Earphones is the perfect solution for moving freely on-stage while ensuring the perfect monitor mix is delivered straight to your ears. Delivering performance and reliability, the U500 In-Ear Monitoring Systems are sure to pass your expectations. Thanks to its advanced technology, contemporary design, as well as straightforward operation.

Offering a selection of 96 channels and 2, 10, or 30 mW RF output power; the U506 IEM HP is capable of more than 100m transmission range. It also allows for convenient infrared synchronisation of your transmitter and receiver for a quick, pain-free setup. Sporting high- contrast OLED displays, the U506 IEM HP allows for individual user name assignment. As well as the ability to save 10 custom presets.

3-band EQ with parametric mids

What’s more, the U506 IEM HP includes a 3-Band EQ with parametric mids, a switchable limiter, and a squelch circuit. Offering a choice of both stereo and mono operation as well as a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95dB and less than 0.3% THD; the noise floor on the U506 IEM HP U500 In-Ears is exceptionally low.

The U500 Bodypack Receiver also only draws little current, so it’s capable of lasting up to 10 hours on two AA batteries. While a convenient volume control allows for mid- performance level adjustments. There are also three selectable squelch levels to ensure optimum performance at all times.

Extended frequency response

Finally, the U500 In-Ear Monitoring Systems like the U506 IEM HP is available in 5 frequency ranges.

  • 470 – 490 MHz
  • 514 – 542 MHz
  • 584 – 608 MH
  • 655 – 679 MHz

These bands permit up to 12 systems simultaneously.

As well as;

  • 823 – 832 MHz
  • 863 – 865 MHz

These ranges allow for 6 systems to operate at the same time.


Wwave also offers a wide range of LD Systems products.

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo, focus and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • Simultaneous operation of up to 12 systems
  • U500® IEM transmitter compatible with U300® IEM bodypacks

More Information
Additional Information

LDIEHP2 – LD Systems U506 IEM HP Professional In-Ear Headphones

Product type Headphones

Type Stereo-In-Ear Headphones

Converter principle Dynamic

Impedance 32 Ohm(s)

Connection type 3.5 mm TRS

Frequency response 20 – 18000 Hz

Cable length 1.55 m

Weight 0,022 kg

Accessories (included) Transport case

LDU506IEMR – LD Systems U506 IEM HP Receiver

Product type In-ear Monitoring Accessories

Type Receivers

Transmission frequency range 655 – 679 MHz

Channels 12

Transmission method FM, mono/stereo

Frequency response 40 – 16000 Hz

Audio output 3.5 mm TRS

Max. audio output level 80 mW @ 33 Ohm mW

Indicators RF (LED)

Operating time < 10 Std.

Antenna connector Fixed to housing

Controls volume

Operating voltage 2 x 1.5 V AA

Width 64 mm

Features battery status LED

Height 100 mm

Depth 24 mm

Weight 0,095 kg

Accessories (included) Antenna

LDU506IEMT – LD Systems U506 IEM HP Transmitter

Type Transmitters

Modes of operation mono/stereo

Rated HF output power Variable (2mW, 10mW, 30mW)

Signal-to-noise ratio 93 dB

Total Harmonic Distortion (THD) 0.3 %

Dynamic range 88 dB

Inputs 2

Input connectors XLR (balanced)

Input impedance (kOhms) 12 kOhm

Antenna connector BNC

Controls volume headphones

Operating voltage 12 – 18 V DC

Accessories (included) power adapter

Audio Options Wireless
Event Size Up to 20
