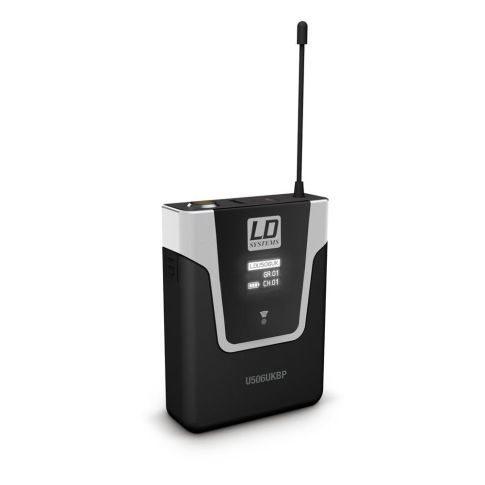

LD Systems U506BP Bodypack

The LD Systems U506BP is a high-quality wireless bodypack transmitter for the U500 series wireless microphones.  Perfect as a replacement for an existing system or to add more flexibility to your current wireless microphone setup.

$329.00

The LD Systems U506BP is a high-quality wireless bodypack transmitter for the U500 series wireless microphones.  Perfect as a replacement for an existing system or to add more flexibility to your current wireless microphone setup.

LD Systems U506BP

The LD Systems U506BP is a high-quality wireless bodypack transmitter for the U500 series wireless microphones.  Perfect as a replacement for an existing system or to add more flexibility to your current wireless microphone setup.

With automatic channel scanning, convenient infrared synchronization and intuitive menu navigation. Plus an easily-readable OLED display featuring battery status indicator and user name assignment; therefore the U500 Series of True Diversity UHF radio systems are ready to use in an instant. Operating in the B6:(655 – 679 MHz) frequency band and with a selectable RF output power of 5mW, 10mW, and 30 mW.  Additionally, the inclusion of quelch control with pilot tone ensures optimum audio and transmission quality without artefacts and a free-field range of over 100m.

Compatible with a wide range of lapel, headset, and instrument attachments. Allowing your system to be tailored to suit different applications. For direct connection to guitar and bass amps, the outputs of the receivers are switchable to instrument level. The wide frequency range of 30 – 16,000 Hz also handles the lowest bass notes.

Overall, the perfect replacement for an exisiting bodypack, or to add more flexibility to your existing setup.

  • True diversity UHF wireless system
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

More Information
Additional Information

Product type: Wireless Microphone System Accessories

Type: Bodypack

Transmission frequency range: 655 – 679MHz

Channels: 96 (8 groups of 12 channels)

Groups: 8

Inputs: Mini-XLR (3-pin)

Frequency response: 30 – 16000Hz

Signal-to-noise ratio: >90dB

Rated HF output power: Variable (2mW, 10mW, 30mW)

Controls: menu, set, Power On/Off

Indicators: OLED Display

Operating voltage: 2 x AA battery

Operating time: >10 h (with alkaline batteries)

Width: 65mm

Height: 86mm

Depth: 23mm

Weight: 90 g

Audio Options Wireless
Event Size Up to 20
