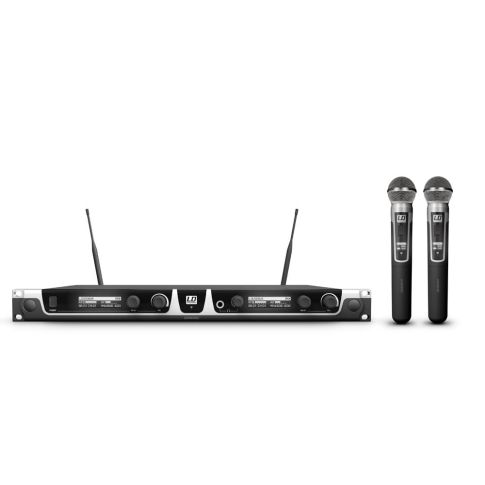

LD Systems U506HHD2 – Dual Wireless Microphone System

The LD Systems U506HHD2 wireless vocal microphone system. It brings you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations.

$1,299.00

The LD Systems U506HHD2 wireless vocal microphone system. It brings you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations.

LD Systems U506HHD2

The LD Systems U506HHD2 wireless vocal microphone system. It brings you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. LD Systems has designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

The U506HHD2 offers selectable transmit power up to 30 mW. It also provides the U500® vocal sets with a free-field range of over 100 metres. You can operate up to 12x single systems (6 dual systems) simultaneously. This True Diversity U506HHD2 UHF wireless system is equipped with an automatic scan facility. As a result, it finds the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy setup.

The U506HHD2 high-contrast OLED displays provide an excellent overview of functions. It includes indicators for group, channel, radiofrequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. The U506HHD2 is perfect for live vocal performances, speech and public addressing, and many more applications.

This U506HHD2 pack comprises 2x Products; A Dynamic handheld microphone(LDU506MD) and Receiver(LDU506R).

2x Dynamic handheld microphone (LDU506MD)

The U506HHD2 pack offers 2x LDU506MD dynamic Carbdiod handheld microphones. They offer a frequency response between 60Hz and 16kHz. They also feature an OLED Display with performance feedback and are powered by 2 x 1.5V AA.

Receiver (LDU506R2)

Finally, the last component to the U506HHD2 pack is the true diversity Receiver with FM. This unit also includes 2x antenna inputs with a BNC antenna connector. It offers a Low Harmonic Distortion of < 0.3 %. It includes an audio output that uses 2x balanced XLR – 12 dBV or 2x 6.3 mm TRS – 18 dBV. For an unbalanced audio output, you can use the 6.3 mm jack.  The front panel also offers a 2 x multifunction LC display with independent knobs for Menu Functions and Output Volume. A power adapter is included.



A wide range of Wireless Microphones Systems is available in the Wwave Online Store.

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

More Information
Additional Information

Product Code: LDU506UKHHD2

Microphone Type: Dual Dynamic Handheld, Cardioid

Operating Frequency: 606 – 614 MHz

Presets: 96 Channels (8 groups of 12 channels)

Frequency response: 60Hz – 16kHz

THD: < 0.9 %

Signal-to-noise ratio: >95 dB

Squelch: < 0.1 %

Pilot Tone: Yes

RF Output Power: Variable (2mW, 10mW, 30mW)

Power Requirements:

  • Receiver: Power Supply 12V DC (included)
  • Body Pack: 2x AA batteries

Operating time (batteries): >10 hr (with alkaline batteries)

Dimensions:

  • Receiver: 484 x 44 x 200 mm
  • Transmitter: Ø 51 x 257 mm

Weight:

  • Receiver: 2.05 kg
  • Transmitter: 0.25 g
Audio Options Wireless
Event Size Up to 20
