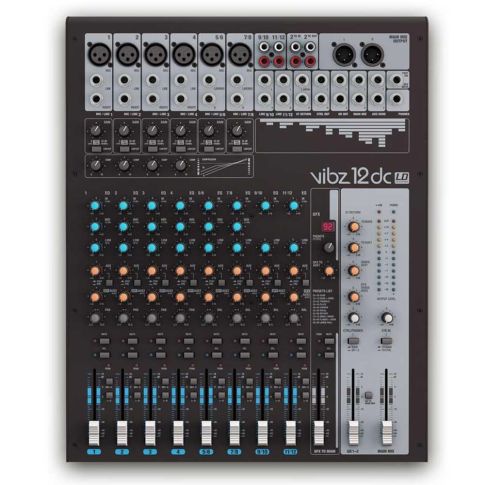

LD Systems VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor
SKU
LDVIBZ12DC
The LD Systems VIBZ 12DC is a versatile 12-channel mixer with 6x microphone channels. It offers 4x stereo line inputs and an Effective 3-band EQ. It also features high-quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.
LD Systems VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor
The LD Systems VIBZ 12DC is a versatile 12-channel mixer with 6x microphone channels. It offers 4x stereo line inputs and an Effective 3-band EQ. It also features high-quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power. Furthermore, you can process 4x microphone channels separately using the built-in compressor for effective control of dynamics.
The master section of the mixer includes two effects loops as well as balanced XLR outputs; group and monitor outputs and a headphone jack. The VIBZ 12DC also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.
The key features that make the VIBZ 12DC versatile are the PFL function or the Mute buttons and its natural, transparent sound. As a result, the VIBZ 12DC is the perfect choice for live performances, installations and demanding home recording applications.
Main Section Controls
The main section of the VIBZ 12DC offers; 2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones.
Mono Channel Controls the VIBZ 12DC offers is a; 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Compressor, DFX/AUX 1, Gain, Low Cut (75 Hz), PFL.
Stereo Channel Controls the VIBZ 12DC offers is; 2-band EQ (High, Low), 3-band EQ (High, Mid, Low), AUX 1, Pre/Post, AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, Gain, Low Cut.
Also available is the Vibz 24DC Channel Mixer with DFX and Compressor.
- High quality preamplifiers
- Low-cut filter
- 3-band EQ with conveniently selected mids and switchable phantom power
- Master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack
- RCA connectors for recording and playback devices
- Digital Effects Section with 100 presets
- PFL function
- Mute buttons
| Additional Information | Product type: Mixers Type: Live Channels: 12
Mono Channels: Mono Mic and Line Input Channels: 4 Mono Mic input connectors: 6.3 mm TRS, XLR Mono Mic Input Type: Electronically balanced Mono Mic Input Frequency Range: 10 – 45000 Hz Amplification Range mono Mic Input: 0 – 50 dB Mono Mic Input Input THD-N: 0.0058% Mono Mic Input Impedance: 4k Ohm(s) Mono Mic Input S/N Ratio: 113 dB Mono Line Input Type: Electronically balanced Mono Line Input Frequency Range: 10 – 45000 Hz Amplification Range mono Line Input: 0 – 50 dB Mono Line Input Input THD-N: 0.0045 % Mono Line Input Impedance: 21k Ohm(s) Mono Line Input S/N Ratio: 116 dB Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz Mono Channel Equalizer Mid: +/- 15 dB @ 2,500 Hz Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Compressor, DFX/AUX 1, Gain, Low Cut (75 Hz), PFL Phantom power: 48 V DC switchable
Stereo Channels: Stereo Line Input Channels: 4 Stereo Line Input Connectors: 6.3 mm TRS, RCA Stereo Line Input Type: Electronically balanced, unbalanced Stereo Line Input Frequency Range: 10 – 45000 Hz Amplification Range stereo Line Input: 0 – 50 dB Stereo Line Input Input THD-N: 0.0045 % Stereo Line Input Impedance: 3,7k Ohm(s) Stereo Line Input S/N Ratio: 116 dB Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz Stereo channel equalizer bass: +/- 15 dB @ 80 Hz Controls Stereo Line Input Channels: 2-band EQ (High, Low), 3-band EQ (High, Mid, Low), AUX 1 Pre/Post, AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, Gain, Low Cut
Main Section: AUX / Effects Send Channels: 2 AUX / Effects Send Connectors: 6.3 mm TRS Stereo AUX Return Channels: 1 x stereo Stereo AUX Return Connectors: 6.3 mm TRS Stereo Tape Out Channel: 1 x stereo Stereo Tape Out Connectors: 2 x RCA (Cinch) Stereo Tape-In Channel: 1 x stereo Stereo Tape-In Connenctors: 2 x RCA (Cinch) Balanced Stereo Main Out: 1 Balanced Stereo Main Out Connectors: XLR Balanced Stereo Main Out Impedance: 120 Ohm(s) Max. Balanced Stereo Main Out Level: 23 dBu Stereo Control Room Out: 1 Stereo Control Room Out Connectors: 6.3 mm TRS Headphones output: 1 Headphones outputs: 6.3 mm TRS Digital Effects Processor: Yes, 24-bit AD/DA Resolution Number of Presets: 100 Footswitch Connector DFX Mute: 6.3 mm TRS Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones Indicators: DFX Peak, DFX TO MAIN, PFL, Phantom Power, Power Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz Width: 350 mm Height: 98 mm Depth: 440 mm Weight: 4.3 kg |
|---|---|
