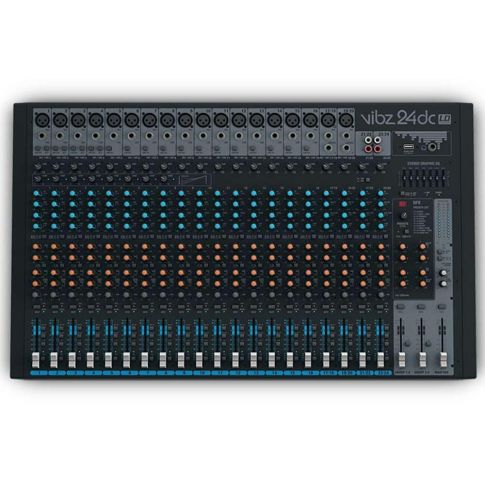

LD Systems VIBZ 24DC – 24 Channel Mixing Console with DFX and Compressor
SKU
LDVIBZ24DC
The LD Systems VIBZ 24DC is a versatile 24-channel mixer with 16x mono and 4x stereo channels. It offers 4x aux sends, 2 pre or post-fader switchable and a 3-band EQ with semi-parametric mids.
LD Systems VIBZ 24DC – 24 Channel Mixing Console with DFX and Compressor
The LD Systems VIBZ 24DC is a versatile 24-channel mixer with 16x mono and 4x stereo channels. It offers 4x aux sends, 2 pre or post-fader switchable and a 3-band EQ with semi-parametric mids. The VIBZ 24 DC is a flagship model, therefore, offering superb audio for in-home studios and live applications. It sports 16x mono channels with 3-band EQ and semi-parametric midrange. It also provides 4x stereo channels with a 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.
Furthermore, all channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Additionally, two sends are switchable pre or post-fader to enable monitoring or effects use. The mono channels’ XLR mic and TRS line inputs are electronically balanced. Here channels 1 to 8 also provides convenient one-knob control of the built-in compressor. They also offer individual insert points for outboard processing.
The master section includes both a balanced and unbalanced main mix and individual group outputs with precision metering. Also the control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.
Main Section Controls
The main section of the VIBZ 24DC offers; 7-band graphic EQ, AUX/DFX Send 1 – 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main; EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK Into Main/To CTRL.
Microphone Channel Controls the VIBZ 24DC offers is a; 3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable); AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Gain, LINE/USB -switch (Channel 21 – 24), PFL / Solo Switch.
Stereo Channel Controls the VIBZ 24DC offers is; 4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 – 2 switchable Pre/Post; AUX/DFX Send 1 – 4, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch.
Also available is the VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor.
- 24 Channel mixer with digital effects and DSP
- 16 Premium microphone inputs with adjustable compression on CH 1 – 8
- 4 dedicated stereo channels
- 4 AUX / Effect sends
- 4 Group sends (1+2 / 3+4)
- 1 Stereo FX return
- 3-band EQ per channel, plus 7-band graphic EQ on main output
- Balanced XLR main out and TRS group sends
- Digital effects section with 100 presets
- Designed & engineered in Germany
| Additional Information | Product type: Mixers Type: Home-Recording, Live Channels: 24
Microphone Mono Mic and Line Input Channels: 16 Mono Mic input connectors: 6.3 mm TRS, XLR Mono Mic Input Type: Electronically balanced Mono Mic Input Frequency Range: 10 – 45000 Hz Amplification Range mono Mic Input: 0 – 50 dB Mono Mic Input Input THD-N: 0.0058% Mono Mic Input Impedance: 4000 Ohm(s) Mono Mic Input S/N Ratio: 113 dB Mono Line Input Type: Electronically balanced Mono Line Input Frequency Range: 10 – 45000 Hz Amplification Range mono Line Input: 0 – 50 dB Mono Line Input Input THD-N: 0.0045 % Mono Line Input Impedance: 21000 Ohm(s) Mono Line Input S/N Ratio: 116 dB Mono Channel Equalizer High: +/-15 dB @ 12.000 Hz Mono Channel Equalizer Mid: 200 – 8000 Mono Channel Equalizer Low: +/-15 dB @ 80 Hz Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable), AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Gain, LINE/USB -switch (Channel 21 – 24), PFL / Solo Switch Phantom power: 48 V DC switchable Mono Inserts: 8 Mono Inserts Connectors: 6.3mm jack
Stereo Channels: Stereo Line Input Channels: 4 Stereo Line Input Connectors: 6.3 mm TRS Stereo Line Input Type: Electronically balanced, unbalanced Stereo Line Input Frequency Range: 10 – 45000 Hz Amplification Range stereo Line Input: 0 – 50 dB Stereo Line Input Input THD-N: 0.0045 % Stereo Line Input Impedance: 37000 Ohm(s) Stereo Line Input S/N Ratio: 116 dB Stereo channel equalizer treble: +/-15 dB @ 12.000 Hz Stereo channel equalizer hi-mids: +/-15 dB @ 2.500 Hz Stereo channel equalizer low-mids: +/-15 dB @ 2.500 Hz Stereo channel equalizer bass: +/-15 dB @ 80 Hz Controls Stereo Line Input Channels: 4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 – 2 switchable Pre/Post, AUX/DFX Send 1 – 4, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch
Main Section: AUX / Effects Send Channels: 4 AUX / Effects Send Connectors: 6.3 mm TS Stereo AUX Return Channels: 1 Group Out: 4 Group Out Connectors: 4 x 6,3mm TRS Balanced Stereo Main Out: 1 Balanced Stereo Main Out Connectors: XLR Unbalanced stereo Main Outputs: 1 Unbalanced stereo Main Output Connections: 2 x 6.3 mm TS Main-Insert Inputs: 1 Main-Insert Input Ports: 2 x 6.3 mm TRS asymmetrically DFX Out Outputs: 1 DFX Out Output Ports: 6.3 mm TRS USB In/Out In-/Outputs: 1 USB In/Out Ports: USB-B Max. Unbalanced Stereo Main Out Level: 22 dBu Stereo Control Room Out: 1 Stereo Control Room Out Connectors: 2x 6.3 mm TRS Headphones output: 1 Headphones outputs: 6.3 mm TRS Digital Effects Processor: Yes Number of Presets: 100 DMX output: 1 Footswitch Connector DFX Mute: 6.3 mm TS Main section controls: 7-band graphic EQ, AUX/DFX Send 1 – 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL Indicators: DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, Signal Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz Width: 712 mm Height: 80 mm Depth: 425 mm Weight: 9.442 kg |
|---|---|
