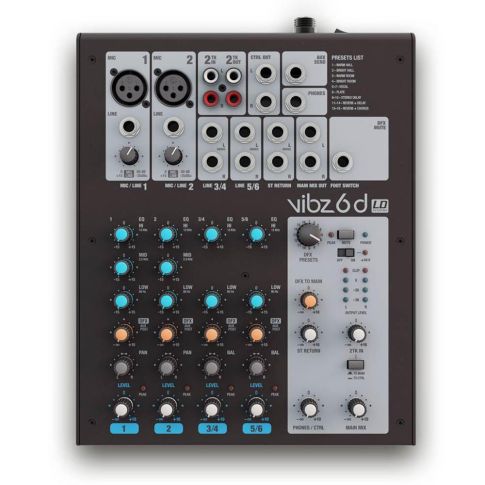

LD Systems VIBZ 6D – 6 Channel Mixing Console with DFX
SKU
LDVIBZ6D
The LD Systems VIBZ 6D is a versatile 6-channel mixer with 16 digital effects. It offers 2x microphone channels with 3-band EQ. 2x mono-compatible stereo line channels are also available with a 2-band EQ.
LD Systems VIBZ 6D – 6 Channel Mixing Console with DFX
The LD Systems VIBZ 6D is a versatile 6-channel mixer with 16 digital effects. It offers 2x microphone channels with 3-band EQ. 2x mono-compatible stereo line channels are also available with a 2-band EQ.
The master section of the VIBZ 6D offers adjustable monitor outputs, a headphone jack and 16 digital effects preset, which are also foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound.
A footswitch for the effects section and an adapter for mounting the VIBZ 6D on microphone stands are also available as accessories.
Main Section Controls
The main section of the VIBZ 6D offers; 2-track Assignment (Main, Contr. Room), 2-track In Volume, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume.
Mono Channel Controls the VIBZ 6D offers is a; 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Gain, pan
Stereo Channel Controls the VIBZ 6D offers is; 2-band EQ (High, Low), AUX (DFX) Post, Balance, Channel Volume
Versatile Mixer
In conclusion, the VIBZ 6D is a compact 6 channel mixer that is perfectly suited for; entertainers, small bands, home recording and installations. It provides 2x balanced microphone inputs with high-quality preamps and phantom power. Furthermore, a 3-band EQ with +/-15 dB adjustment scope is available with 2x stereo line inputs with 2-band EQ (which are mono-compatible, and an effects loop).
Also available is the LD Systems VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor.
- Compact 6-channel mixer
- 2 high quality and low-noise microphone pre-amps
- On board digital FX with 16 presets
- AUX output for FX or fold-back applications
- External power supply
- German design
| Additional Information | Product type: Mixers Type: Live Channels: 6
Mono Channels: Mono Mic and Line Input Channels: 2 Mono Mic input connectors: 6.3 mm TRS, XLR Mono Mic Input Type: Electronically balanced Mono Mic Input Frequency Range: 10 Hz Amplification Range mono Mic Input: 0 – 50 dB Mono Mic Input Input THD-N: 0.0058% Mono Mic Input Impedance: 4k Ohm(s) Mono Line Input Type: Electronically balanced Mono Line Input Frequency Range: 10 Hz Amplification Range mono Line Input: 0 – 50 dB Mono Line Input Input THD-N: 0.0045 % Mono Line Input Impedance: 21k Ohm(s) Mono Line Input S/N Ratio: 116 dB Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Gain, pan Phantom power: 48 V DC switchable
Stereo Channels: Stereo Line Input Channels: 2 Stereo Line Input Connectors: 6.3 mm TS Stereo Line Input Type: unbalanced Stereo Line Input Frequency Range: 10 – 54000 Hz Stereo Line Input Input THD-N: 0.0045 % Stereo Line Input Impedance: 3,7k Ohm(s) Stereo Line Input S/N Ratio: 116 dB Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz Stereo channel equalizer bass: +/- 15 dB @ 80 Hz Controls Stereo Line Input Channels: 2-band EQ (High,Low), AUX (DFX) Post, Balance, Channel Volume Main Section: AUX / Effects Send Channels: 1 AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced Stereo AUX Return Channels: 1 x stereo Stereo AUX Return Connectors: 2 x 6.3 mm TRS Stereo Tape Out Channel: 1 x stereo Stereo Tape Out Connectors: 2 x RCA (Cinch) Stereo Tape-In Channel: 1 x stereo Stereo Tape-In Connectors: 2 x RCA (Cinch) Unbalanced stereo Main Outputs: 1 Unbalanced stereo Main Output Connections: 6.3 mm TRS Unbalanced Stereo Main Out Impedance: 120 Ohm(s) Max. Unbalanced Stereo Main Out Level: +20 dBu Stereo Control Room Out: 1 Stereo Control Room Out Connectors: 6.3 mm stereo jack unbalanced Headphones output: 1 Headphones outputs: 6.3 mm TRS Digital Effects Processor: Yes, 24-bit AD/DA Resolution Number of Presets: 16 Footswitch Connector DFX Mute: 6.3 mm TRS Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume Indicators: 4-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power Operating voltage: 18V DC – 1 A, External PSU, 230 V Width: 209 mm Height: 68 mm Depth: 260 mm Weight: 1.45 kg |
|---|---|
| Audio Options | Wireless |
| Event Size | Up to 20 |
