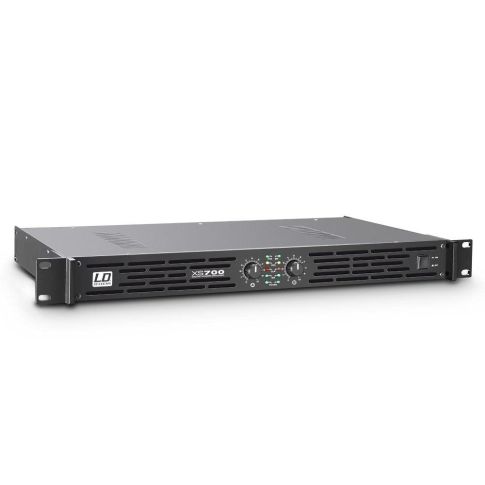

LD Systems XS700 PA Power Amplifier
SKU
LDXS700
LD Systems XS700
The LD Systems XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.
The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.
The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.
LD Systems XS700
The LD Systems XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.
The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.
The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.
- High quality effecient Class-D amplifier
- Outputs 2x 350W into 4Ω
- Full range frequency response
- Lightweight and slimline design
- Built-in protection circuits for added safety
- Designed and engineered in Germany
| Additional Information | Product number: LDXS700 Product type: Power Amplifiers Type: PA Power Amplifiers Rated ouput power (1kHz):
Output circuitry: Class D Frequency response: 20Hz – 20kHz THD: < 0.1 % Gain: 36 dB / 27 dB / 31 dBdB Input sensitivity: 0.6 V / 1.7 V / 1.1 VV Protection circuits: DC, soft start, over-current, thermal overload, short circuit Controls: volume, Gain, On / Off, ground lift, limiter, mode Indicators: Power, mode, signal, clip, protect (protection circuit engaged) Line inputs: 2 Line input connectors: RCA, 6.3 mm Jack Loudspeaker outputs: 2 Speaker output connections: Speakon compatible, Terminal posts Cooling: low-noise fan Operating voltage: Switching Power Supply, 115 V AC / 230 V AC (switchable) Power consumption @ full load: 860W Dimensions: 482 x 44 x 244mm Weight: 4kg |
|---|---|
