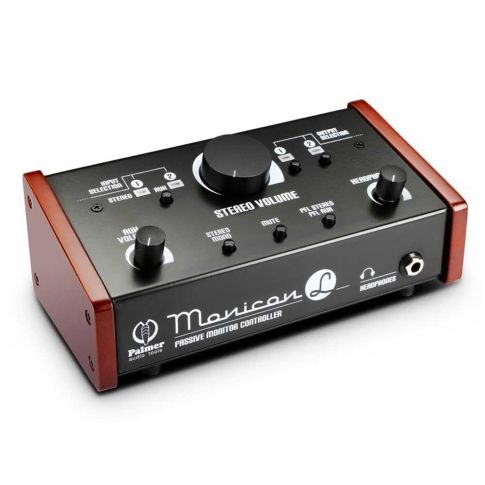

Palmer Monicon L Passive Monitor Controller
SKU
PMONICONL
The Palmer Monicon L gives you a precise, analog passive monitor controller. Connecting the Monicon L between your computer or audio interface and your active monitor speakers. The switch on the Monicon L is completely passive and distortion free. While the LED displays and built-in headphone amplifier are both powered via the included power supply.
Palmer Monicon L
The Palmer Monicon L gives you a precise, analog passive monitor controller. Connecting the Monicon L between your computer or audio interface and your active monitor speakers. The switch on the Monicon L is completely passive and distortion free. While the LED displays and built-in headphone amplifier are both powered via the included power supply.
Additionally, symmetric combo sockets serve as stereo inputs. Featuring both RCA sockets and also a 3.5mm stereo jack. The Monicon L also offers outputs for two monitor pairs as well as a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. On top of that, the Monicon L is equipped with mono, mute, and PFL switches. As well as a 6.35mm headphone output, separate AUX and headphone controllers for added convenience.
For even more control, take a look at the Palmer Monicon XL.
- All-passive volume control circuit
- Stereo and AUX inputs
- Dual outputs
- Additional mono output
- Balanced and unbalanced connection
- Integrated high quality headphone amplifier
- Mono, mute and PFL switches
- Stereo volume, AUX and headphone level controls
- Elegant design with solid wood side panels
- Built to last
| Additional Information | Product type: Other Studio and Recording Equipment Channels: 2 Inputs: 2 Input connectors: 3.5 mm TRS , RCA , XLR Input type: balanced/unbalanced (depending on TS/TRS connection) Max. input level: 20 dBu Input impedance: (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s) Outputs: 3 Output connectors: XLR Output type balanced/unbalanced (depending on TS/TRS connection) Max. output level: 20 dBu Output impedance: 600 Ohm(s) Frequency response: 10 – 40000 Hz Total Harmonic Distortion (THD): 0.001 % Max. attenuation (Attenuator + Mute) 112 dB , (Attenuator) 85 dB Controls: attenuation , input selector , mono , mute , output selector , PFL source Cabinet material: sheet steel , wood Cabinet surface: Powder coated Width: 218 mm Height: 77 mm Depth: 100 mm Weight: 1,14 kg |
|---|---|
