Palmer PLI04 Media DI Box 2-Channel for PC and Laptop
SKU
PLI04

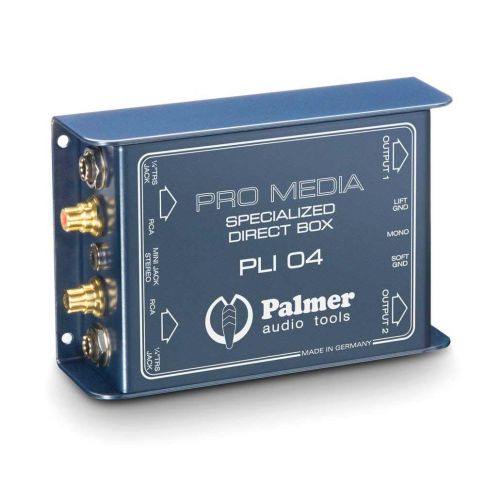

Palmer PLI04
The Palmer PLI04 brings you a 2-Chanel DI Box that provides compatibility between computers and professional equipment. It’s a dedicated interface which feeds unbalanced stereo audio from a USB port to balanced mic inputs on mixing consoles. The PLI04USB supports both 44.1, 48, and 96 kHz sample rates and provides high-quality D/A conversion with 24-bit resolution.
The signal output is also transformer balanced on standard wiring male XLR connectors; with individual isolating switches for both left and right channels.
What’s more, the PLI04 features a mono summing switch. Effectively doubling as a signal splitter capable of routing the mono signal to separate systems.
Finally, the PLI04 features a headphone output with level control. So you have a means of convenient monitoring and a ground lift.
Palmer PLI04
The Palmer PLI04 brings you a 2-Chanel DI Box that provides compatibility between computers and professional equipment. It’s a dedicated interface which feeds unbalanced stereo audio from a USB port to balanced mic inputs on mixing consoles. The PLI04USB supports both 44.1, 48, and 96 kHz sample rates and provides high-quality D/A conversion with 24-bit resolution.
The signal output is also transformer balanced on standard wiring male XLR connectors; with individual isolating switches for both left and right channels.
What’s more, the PLI04 features a mono summing switch. Effectively doubling as a signal splitter capable of routing the mono signal to separate systems.
Finally, the PLI04 features a headphone output with level control. So you have a means of convenient monitoring and a ground lift.
None
| Additional Information | Product type: Line Isolators Channels: 2 Inputs: 5 Input connectors: 3.5 mm TRS , 6.3 mm jack , RCA Input type: unbalanced Input impedance: (at 600 ohms load) 6 k Ohm(s) Max. input level: + 6 dBu Outputs: 2 Output connectors: XLR Output type: balanced Output impedance: 600 Ohm(s) Max. output level: + 6 dBu Transformer balanced: Yes Ratio: 3.16 : 1 Frequency response: 20 – 20.000 Hz Controls: ground lift , mono/stereo Cabinet material: sheet steel Cabinet surface: Powder coated Width: 140 mm Depth: 95 mm Height: 35 mm Weight: 0,699 kg |
|---|---|
