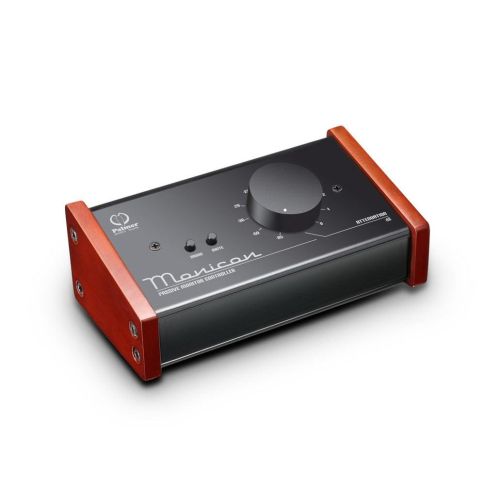

Palmer PMONICON Passive Monitor Controller
Palmer PMONICON
The Palmer PMONICON is a sleek desktop passive volume control for your monitors and speaker setup. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.
The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking “little helper” that is a typical Palmer product.
Palmer PMONICON
The Palmer PMONICON is a sleek desktop passive volume control for your monitors and speaker setup. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.
The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking “little helper” that is a typical Palmer product.
- Precise 2in/2out volume controller
- Passive design doesn’t add distortion or noise
- Oversized control knob
- Insert between interface and monitors
- XLR/TRS combo inputs and iutputs
- 1/8″ TRS stereo input and output
- Genuine wooden sides
- Works with Professional and Consumer products
| Additional Information | Product type: Other Studio and Recording Equipment Channels: 1 Inputs: 2 Input connectors: 3.5 mm TRS, XLR Input type: balanced/unbalanced (depending on TS/TRS connection) Max. input level: 20 dBu Input impedance: (balanced) 10k, (unbalanced) 5k Ohm(s) Outputs: 2 Output connectors: XLR, 3.5 mm TRS Output type: balanced/unbalanced (depending on TS/TRS connection) Max. output level: 20 dBu Output impedance: 600 Ohm(s) Frequency response: 10 – 40000 Hz THD: 0.001 % Max. attenuation: (Attenuator) 85, (Attenuator + Mute) 112 dB Controls: mute, mono, attenuation Cabinet material: wood, sheet steel Cabinet surface: powder coated Dimensions: 164 x 62 x 85 mm Weight: 0.75 kg |
|---|---|
