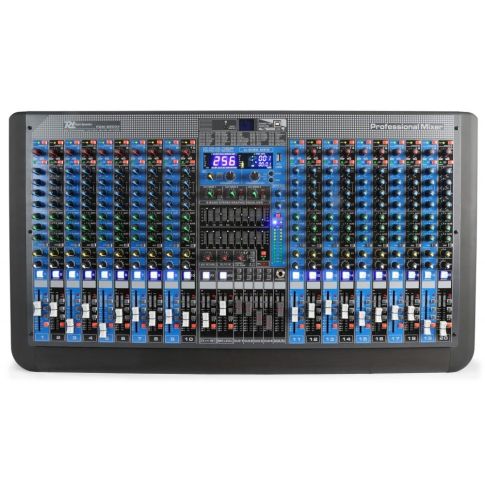

Power Dynamics PDM-S2004 PA Mixer 20 Channel FX and BT MP3 Player

Be the first to review this product
SKU
PDM-S2004

Power Dynamics PDM-S2004

The Power Dynamics PDM-S2004 is a professional 20-channel dual function PA mixer loaded with features. Split into 2 sides with 10 channel per side, 4 sub groups, aux sends, and more. Everything you need to get a great mix for your production or event. The PDM-S2004 has 20 selectable mic/line mono inputs, each with low noise transparent microphone preamps. Also included is a 24-bit digital multi-FX processor, USB MP3 Player, and dual 9-band graphic EQ for adding extra depth and tone to your productions. A must have for any house of worship, school, small theatre, and more.

$1,099.00

Power Dynamics PDM-S2004

The Power Dynamics PDM-S2004 is a professional 20-channel dual function PA mixer loaded with features. Split into 2 sides with 10 channel per side, 4 sub groups, aux sends, and more. Everything you need to get a great mix for your production or event. The PDM-S2004 has 20 selectable mic/line mono inputs, each with low noise transparent microphone preamps. Also included is a 24-bit digital multi-FX processor, USB MP3 Player, and dual 9-band graphic EQ for adding extra depth and tone to your productions. A must have for any house of worship, school, small theatre, and more.

Power Dynamics PDM-S2004

The Power Dynamics PDM-S2004 is a professional 20-channel dual function PA mixer loaded with features. Split into 2 sides with 10 channel per side, 4 sub groups, aux sends, and more. Everything you need to get a great mix for your production or event. The PDM-S2004 has 20 selectable mic/line mono inputs, each with low noise transparent microphone preamps. Also included is a 24-bit digital multi-FX processor, USB MP3 Player, and dual 9-band graphic EQ for adding extra depth and tone to your productions. A must have for any house of worship, school, small theatre, and more.

  • 20 Mono microphone-/line inputs balanced (XLR + 6.3mm Jack)
  • Built-in stereo USB/Audio Interface to connect directly to your computer
  • +48V phantom power with individual preamp per channel
  • 75Hz Low cut filter per channel
  • Multi-FX processor with 256 presets
  • Solo switch per channel (PFL)
  • On/off switch per channel
  • Hi, Mid and Low control for each channel
  • Adjustable Mid frequency per channel
  • 3 Aux sends per channel (1 pre-/2 post fader)
  • Adjustable FX, Pan, Trim per channel
  • Dual 9-band Equalizer
  • Stereo main outputs balanced (XLR + 6.3mm Jack)
  • 4 Assignable Subgroup outputs (6.3mm Jack)
  • Separate control room, headphones and stereo rec outputs
  • Built-in USB player with digital display
  • BT-receiver for audio streaming
  • LED VU meter and Peak LED’s

More Information
Additional Information

Frequency response: 10Hz -45kHz (±3dB)

THD: <0.01%

DSP Resolution: 24-bit

Type of effects: Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay

Presets: 256

Signal to noise ratio: >112dB

Output level: +/- 1V

Input:Line: +/- 150mV

Input:Mic: +/- 1.5mV

Power supply: 100-240VAC / 50-60Hz

Dimensions: 450 x 775 x 145mm

Weight: 10.4kg
Audio Options Wireless
Event Size Up to 20
