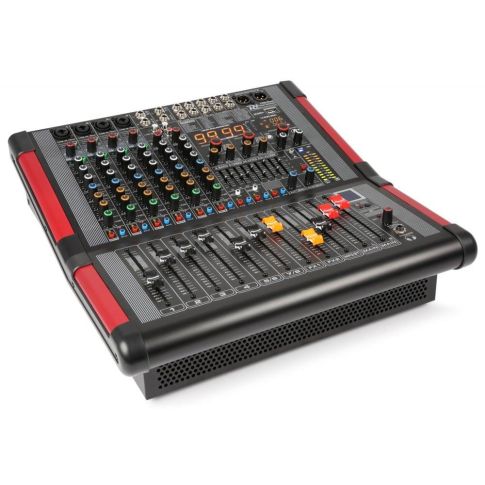

Power Dynamics PDM-S804A 8 Channel Powered Mixer 700W

Be the first to review this product
SKU
PDM-S804A

Power Dynamics PDM-S804A

The Power Dynamics PDM-S804A is a compact and professional 8 Channel powered PA mixer. Delivering great sound and versatility for your next gig or event. Each mixer channel includes a high-quality and low noise mic preamp with LINE in functionality for dual use. The body of the mix uses a familiar layout and signal flow with gain control, 3-band parametric EQ per channel, FX/AUX send, and L/R pan. An integrated power amplifier allows you to connect and power your passive speaker with a 2x 350W RMS output. Everything you need to create a great mix. The PDM-S804A also includes an integrated 24-bit dual digital FX processor with 99 presets each, USB Media player/recorder, and Bluetooth receiver for streaming your favourite music. Perfect for a wide range of stages, bands, venues, and more.

$699.00

Power Dynamics PDM-S804A

The Power Dynamics PDM-S804A is a compact and professional 8 Channel powered PA mixer. Delivering great sound and versatility for your next gig or event. Each mixer channel includes a high-quality and low noise mic preamp with LINE in functionality for dual use. The body of the mix uses a familiar layout and signal flow with gain control, 3-band parametric EQ per channel, FX/AUX send, and L/R pan. An integrated power amplifier allows you to connect and power your passive speaker with a 2x 350W RMS output. Everything you need to create a great mix. The PDM-S804A also includes an integrated 24-bit dual digital FX processor with 99 presets each, USB Media player/recorder, and Bluetooth receiver for streaming your favourite music. Perfect for a wide range of stages, bands, venues, and more.

Power Dynamics PDM-S804A

The Power Dynamics PDM-S804A is a compact and professional 8 Channel powered PA mixer. Delivering great sound and versatility for your next gig or event. Each mixer channel includes a high-quality and low noise mic preamp with LINE in functionality for dual use. The body of the mix uses a familiar layout and signal flow with gain control, 3-band parametric EQ per channel, FX/AUX send, and L/R pan. An integrated power amplifier allows you to connect and power your passive speaker with a 2x 350W RMS output. Everything you need to create a great mix. The PDM-S804A also includes an integrated 24-bit dual digital FX processor with 99 presets each, USB Media player/recorder, and Bluetooth receiver for streaming your favourite music. Perfect for a wide range of stages, bands, venues, and more.

  • 4 Balanced mono microphone-/line input (Combi XLR/Jack)
  • 2 Balanced stereo line inputs (6.3mm Jack)
  • 2 Balanced stereo line inputs (RCA)
  • +48V phantom power with individual preamp per channel
  • 75Hz Low cut filter per channel
  • Adjustable FX, Pan, Trim per channel
  • Aux send per channel
  • Solo switch per channel (PFL)
  • Mute switch per channel
  • Dual Multi-FX processor with both 99 presets
  • Built-in 2x 350W RMS Amplifier
  • Stereo balanced main outputs (XLR + 6.3mm Jack)
  • 9-Band Equalizer
  • Separate control room and headphones outputs
  • Built-in USB player with digital display
  • BT-receiver for audio streaming
  • LED VU meter and Peak LED’s

More Information
Additional Information

Power Continue: 2x 350W rms

Output power: 700W

Frequency response: 10Hz -45kHz (±3dB)

THD: <0.01%

DSP Resolution: 24-bit

Type of effects: Early ref, Chorus, Phaser, Flanger, Symphonic, Doubler, Radio voice, Distortion, Delay, room, Chapel, Hall, Plate, Gated, Reverse, Ambience, Pitch shift, Ping pong delay

Presets: 2x 99

Output level: +/- 1V

Input:Line: +/- 150mV

Input:Mic: +/- 1.5mV

Power supply: 100-240VAC / 50-60Hz

Dimensions: 420 x 425 x 170mm

Weight: 11.2kg
Audio Options Wireless
Event Size Up to 20
