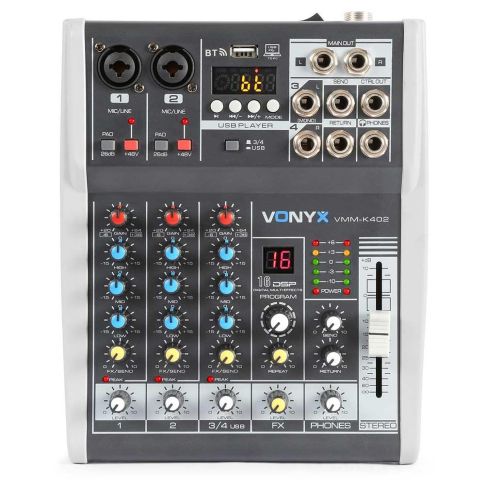

Vonyx VMM-K402 – 4 Channel Music Mixer Bluetooth USB with DSP
The VMM-K402 is an affordable tabletop 4x Channel Music Mixer. It provides you control of High, Mid and Low frequencies for each channel. It also includes an FX-Send control for each channel where you can take advantage of the 16x in-built Digital Multi-Effects.
Vonyx VMM-K402 4-Channel Music Mixer
The Vonyx VMM-K402 is an affordable tabletop 4x Channel Music Mixer. It provides you control of Gain, High, Mid and Low frequencies for each channel. It also includes an FX-Send control for each channel so you can take advantage of the 16x in-built Digital Multi-Effects.
16 Pre-programmed DSP functions
The DSP (Digital Signal Processing) will give you the ability to digitally process your audio signals. The VMM-K402 ships with 16 pre-programmed DSP functions and you can apply these to each of your channels independently. The effects amount can be controlled with a dedicated knob so you can mix the desired effect into your mix.
The VMM-K402 is an easy to use mixing console for amateur and studio musicians. You can use it for live sound as well as recording because it offers individually controllable phantom power for microphone inputs. It further offers audio streaming capabilities with the built-in Bluetooth receiver and also features a Built-in USB player with a digital display. Below the digital display, you also have dedicated buttons for Pause, Play, Next and Previous Track.
Inputs and Outputs
With 2 x mono microphone/line inputs (combi XLR / 6.3 mm jack) on channels 1 & 2 will provide +48V phantom power with a preamplifier per channel. In order to provide phantom power for your microphone, you just need to engage the +48V button. A Padding function is also present if you need to reduce the incoming signal by -26dbs on channels 1 and 2.
The VMM-K402 also features stereo balanced main outputs (6.3 mm jack) that you can connect to monitors. Inputting a signal onto the channel 3 mixing strip provides you with 2x options. It can either be used for an incoming signal via channels 3 & 4 or switched to a USB incoming signal. Input channels on 3 & 4 both use (6.3mm Jack) inputs. For a mono signal, you can just use channel 3 and for stereo signals both channels 3 & 4 as the best solution.
Additional features include an FX send and return and a headphone input(6.3mm Jack) for monitoring the mix on your headset.
Wwave also offers a wide range of Quality Headphones for your mixing needs.
- 2 Mono microphone-/line input (Combi XLR/Jack)
- 1 Stereo line input (6.3mm Jack)
- Internal soundcard with record function USB/PC (USB connection)
- 16 Pre-programmed DSP functions
- +48V phantom power with individual preamp per channel
- Stereo balanced main outputs (6.3mm Jack)
- Separate control room and headphones outputs
- Hi, mid and low control per channel
- -26dB PAD on channels 1 and 2
- FX send/return
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED’s
Playback options: USB
Input Connections: 6.3mm Jack, USB, XLR (3-pin)
Output connections: 6.3mm Jack
Frequency response: 15Hz – 22.000Hz
Input level Microphone: 1.5mV, 2 kOhm
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 185 x 225 x 50mm
|Event Size||Up to 20|
